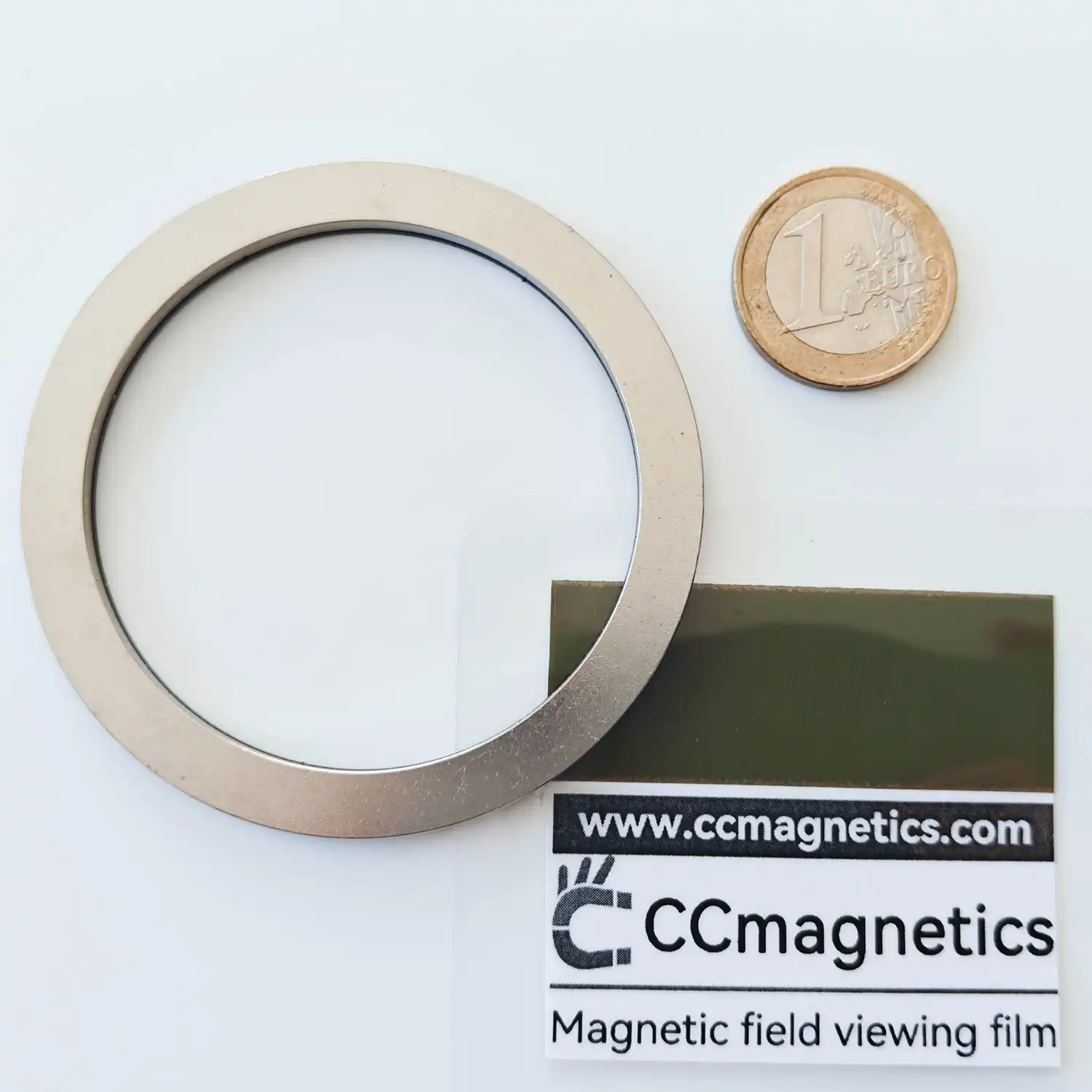

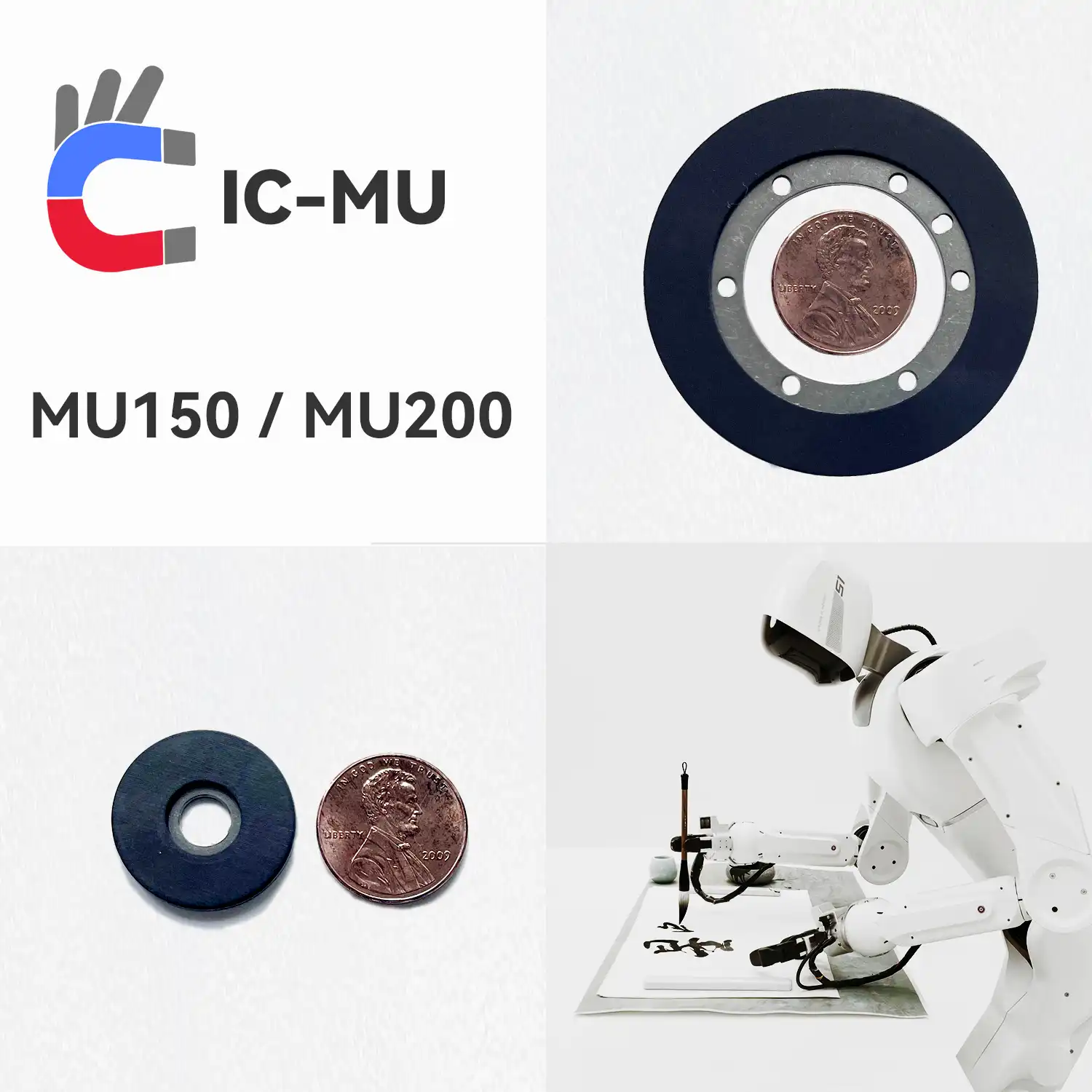

IC-MU200: Absolute Encoder Magnet
IC-MU200: Absolute Encoder Magnet
IC-MU magnetic ring
Magnetic Ring for IC-MU: Absolute Encoder Magnet - Image 8
Magnetic Ring for IC-MU: Absolute Encoder Magnet - Image 9

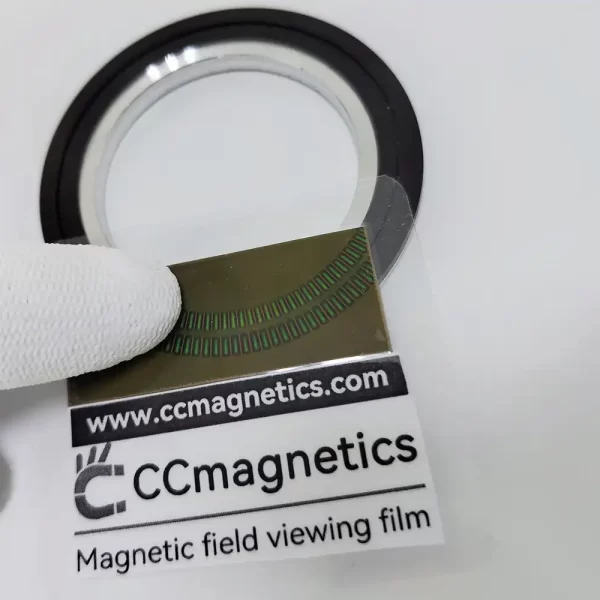

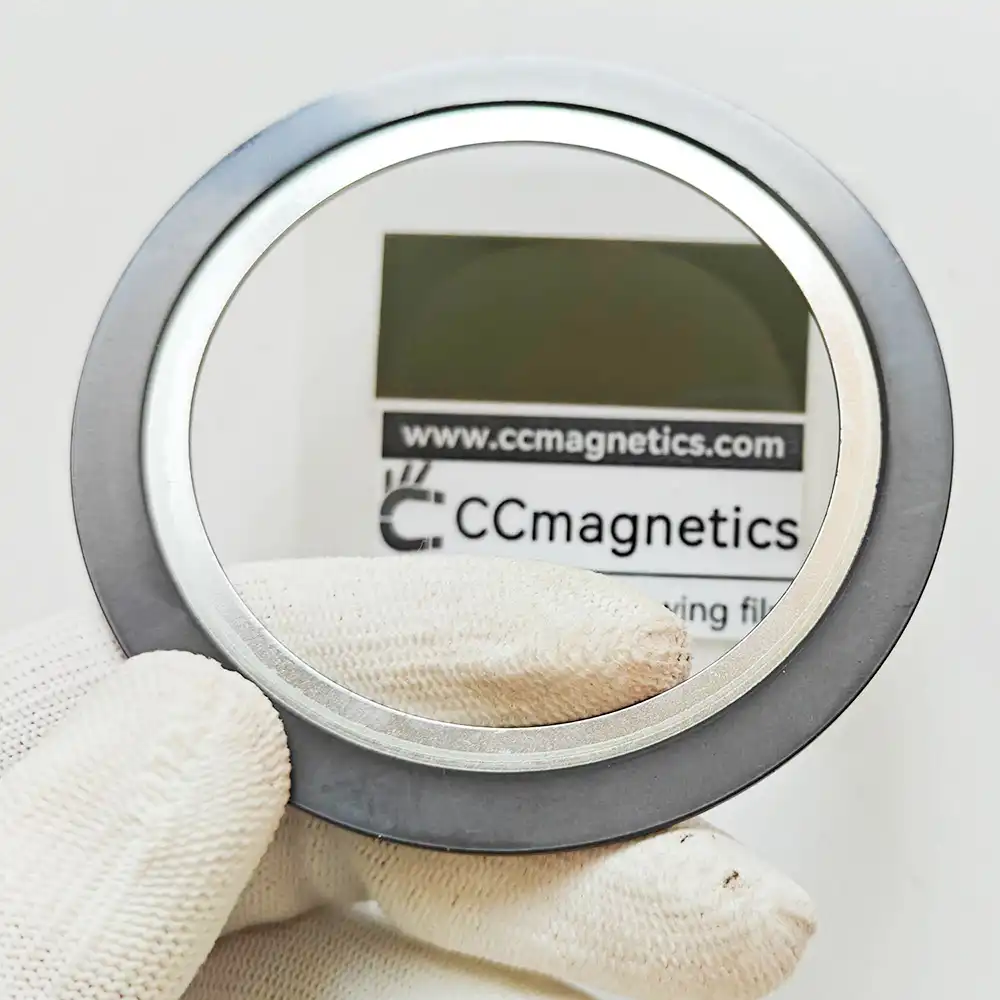

IC-MU200 magnetic ring
Magnetic Ring for IC-MU

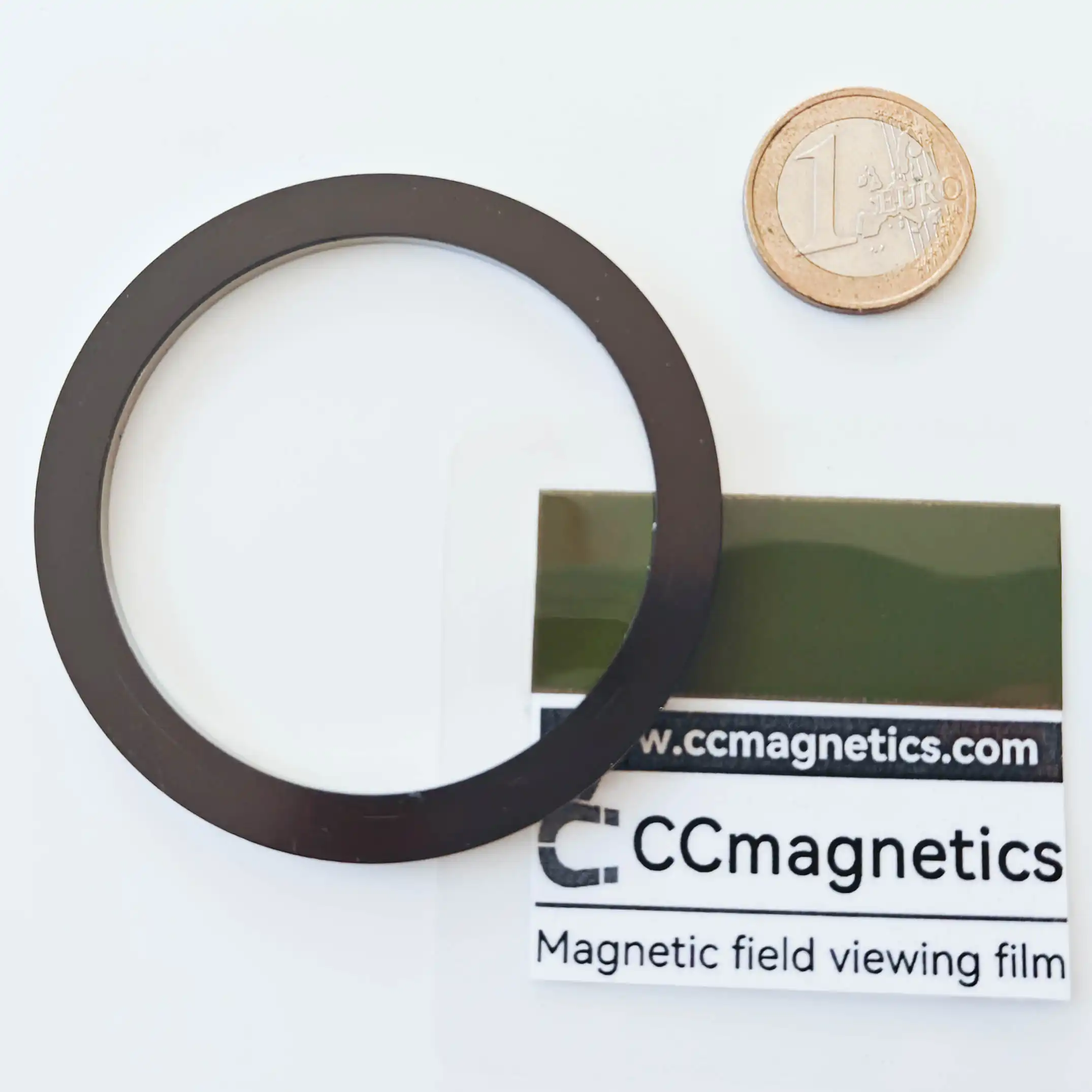

IC-MU200: Absolute Encoder Magnet

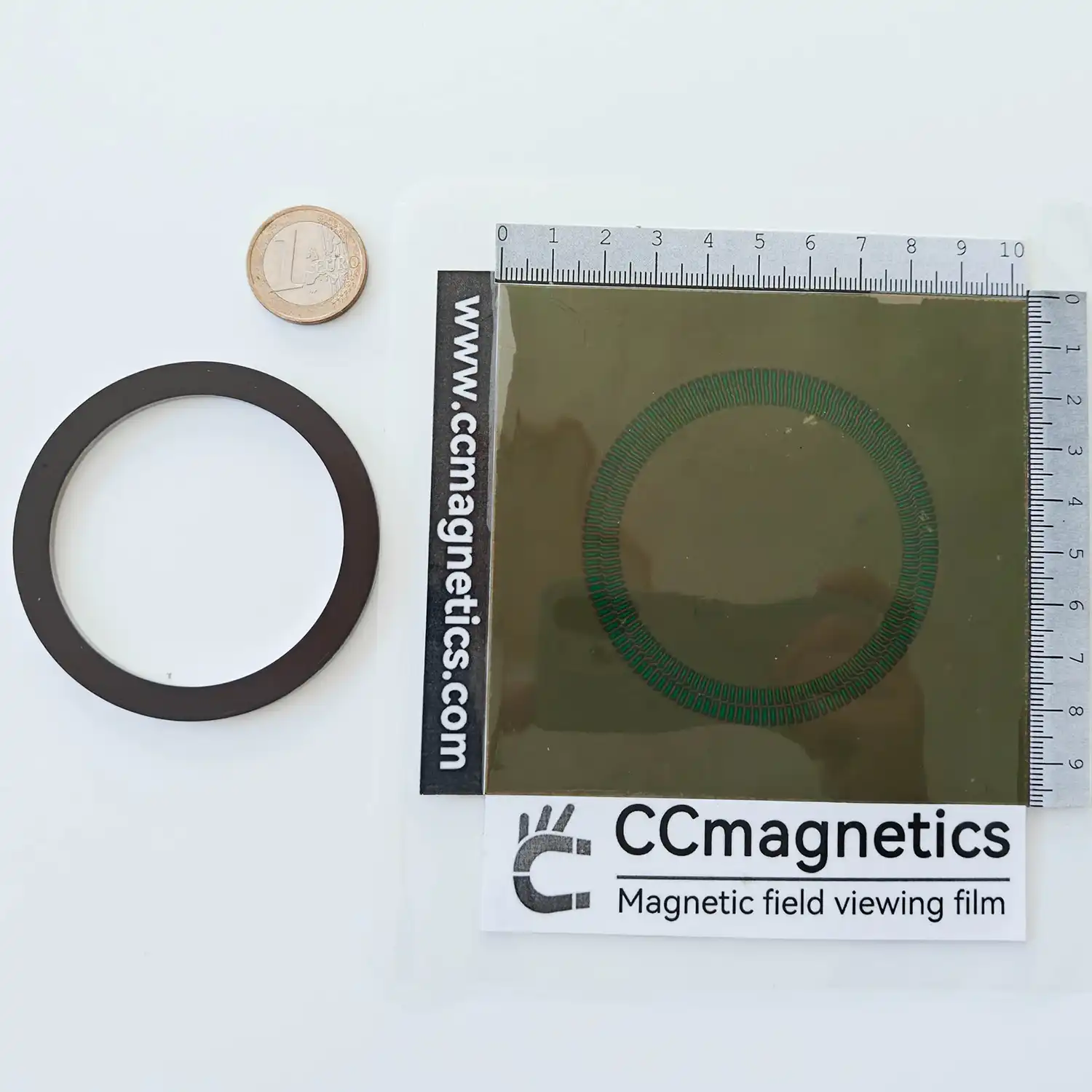

IC-MU200: Absolute Encoder Magnet

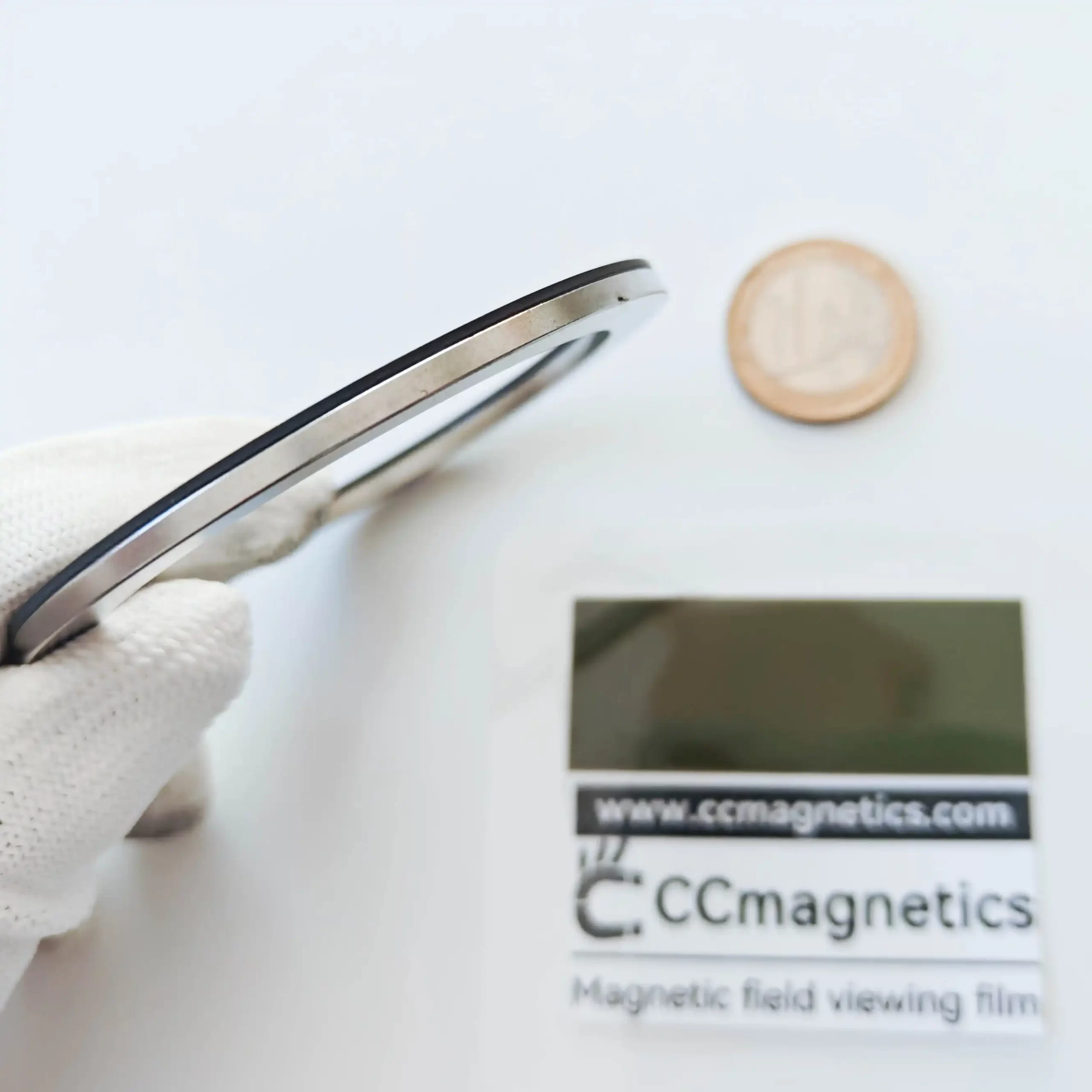

IC-MU200: Absolute Encoder Magnet
IC-MU magnetic ring
IC-MU200 magnetic ring

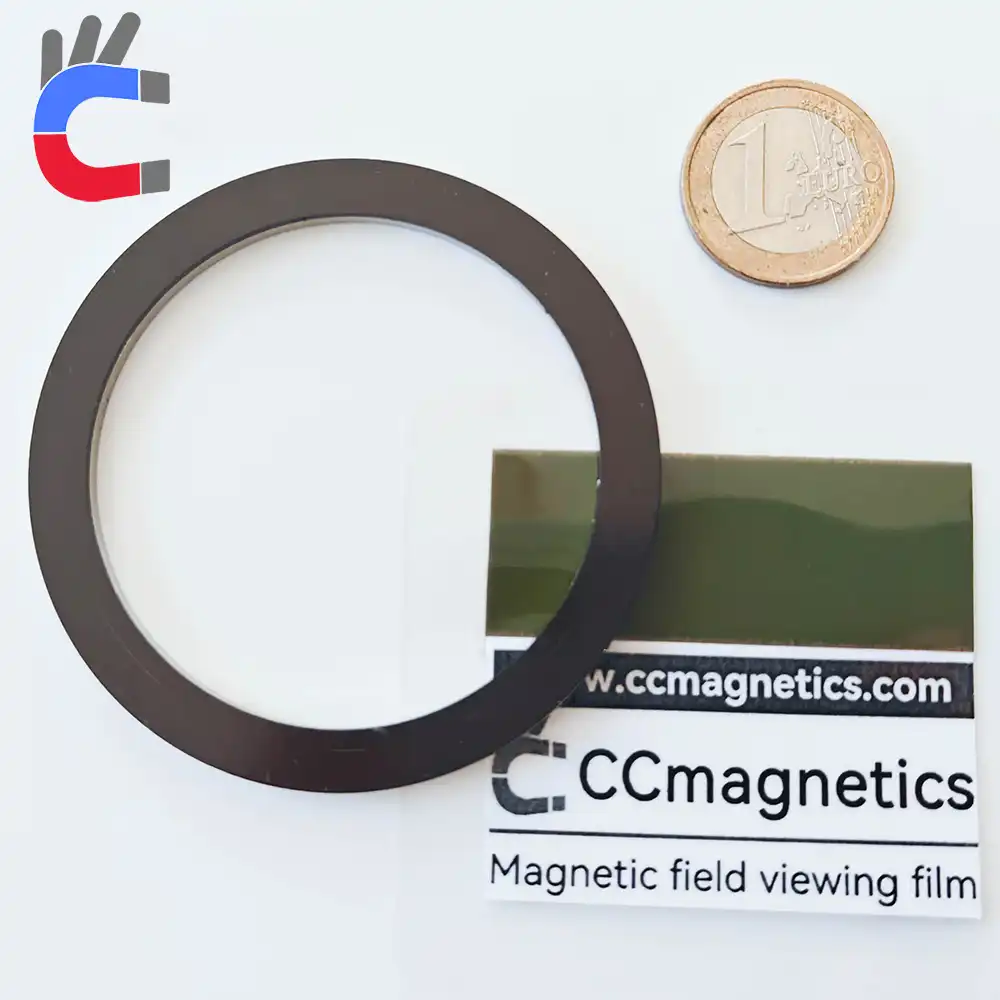

Magnetic Ring for IC-MU: Absolute Encoder Magnet

$17.95

  • Made of the same vulcanized magnetic rubber material as the original authentic product;
  • Operating temperature range: -35°C to +120°C;
  • All tested for concentricity and precision marking before leaving the factory;
  • Has passed IATF16949 and other necessary certifications;
  • MOQ is only 5 pieces, fast response, supporting global door-to-door delivery.
inquiry
SKU: G191302 Categories: , Brand:

CCmagnetics's Absolute Encoder magnetic ring, they perfectly fit IC-MU, MU150, MU200, please note: IC-MU's master-track's Pole Width is 1.28mm, IC-MU150's Pole Width is 1.5mm, and IC-MU200's Pole Width is 2mm. All models of Absolute encoder magnet rings below have passed software testing, have no accuracy and concentricity issues, guaranteeing you can use them right after receiving them; our Absolute encoder magnet rings supply multiple robot/joint module companies in China, can stably supply long-term. The more you buy, the lower the price, the more discounts, the purchase volume participating in the discounts can be accumulated.

IC-MU Absolute Encoder Magnet

Please note, the outer diameter, inner diameter, thickness differences in the table, mostly only exist in the difference of metal carrier. Some metal carriers are with screw holes. Please purchase according to your needs, among which the 1.1mm thick Absolute encoder magnet rings can be pasted with glue to your DIY carriers.

Parameter table explanation:

SKUComp. ICO.DI.DThick
M1
N1		P1Pole pairsSimilar ModelsDatasheet
R0883MU2004925244.936.920.45Master 32, Nonius 31MU42S 49-32NDownload
R0713IC-MU27.2151.125.21810.8Master 32, Nonius 31Contact us
R0871IC-MU29151.126.0818.8811.24Master 32, Nonius 31MU2S 30-32NDownload
R0661IC-MU2910226.0818.8811.24Master 32, Nonius 31MU2S 30-33NContact us
R0872IC-MU28.516.5226.0818.8811.24Master 32, Nonius 31MU2S 30-34NDownload
R0662IC-MU29152.126.0818.8811.24Master 32, Nonius 31MU2S 30-35NContact us
R0873IC-MU3011326.0818.8811.24Master 32, Nonius 31MU2S 30-36NDownload
R0814IC-MU56381.152.1544.9524.28Master 64, Nonius 63MU35S 56-64NDownload
R0868IC-MU54.7401.152.1544.9524.28Master 64, Nonius 63MU35S 56-64NContact us
R0811IC-MU5635252.1544.9524.28Master 64, Nonius 63MU35S 56-64NContact us
R0801IC-MU54.740252.1544.9524.28Master 64, Nonius 63MU35S 56-64NContact us
R0812IC-MU55352.552.1544.9524.28Master 64, Nonius 63MU35S 56-64NContact us
R0866IC-MU53403.550.142.923.25Master 64, Nonius 63Download
R0815IC-MU56371352.1544.9524.28Master 64, Nonius 63MU35S 56-64NContact us
R0874MU150188216.69.46.5Master 16, Nonius 15Download
R0875MU150207217.19.96.75Master 16, Nonius 15Download
R0714MU15034181.130.5623.3613.48Master 32, Nonius 31MU28S 34-32N/MU36S 35-32NDownload
R0684MU15031.519.51.129.622.413Master 32, Nonius 31Download
R0702MU15033201.130.5623.3613.48Master 32, Nonius 31MU28S 34-32N/MU36S 35-32NContact us
R0704MU15035231.133.125.914.75Master 32, Nonius 31Contact us
R0839MU15031.519.5229.622.413Master 32, Nonius 31Contact us
R0703MU1503320230.5623.3613.48Master 32, Nonius 31MU28S 34-32N/MU36S 35-32NDownload
R0877MU1503920236.128.916.25Master 32, Nonius 31Contact us
R0721MU1503523233.125.914.75Master 32, Nonius 31Download
R0841MU1503418530.5623.3613.48Master 32, Nonius 31MU28S 34-32N/MU36S 35-32NContact us
R0712MU15034201130.5623.3613.48Master 32, Nonius 31MU28S 34-32N/MU36S 35-32NContact us
R0878MU1506447.41.161.1153.9228.76Master 64, Nonius 63Download
R0828MU1506445561.1153.9228.76Master 64, Nonius 63Contact us
R0879MU1506346261.1153.9228.76Master 64, Nonius 63Contact us
R0829MU15064452.561.1153.9228.76Master 64, Nonius 63Contact us
R0838MU15068553.565.157.930.75Master 64, Nonius 63Download
R0529MU200226220.3712.378.19Master 16, Nonius 15Contact us
R0880MU200228220.3712.378.19Master 16, Nonius 15Contact us
R0881MU2002210220.3712.378.19Master 16, Nonius 15Contact us
R0882MU2002511.5222.514.59.25Master 16, Nonius 15Contact us
R0763MU20042291.1403218Master 32, Nonius 31Contact us
R0762MU20044.5251.440.7432.7418.37Master 32, Nonius 31MU37S 45-32NContact us
R0759MU2004837.71.544.69636.69620.35Master 32, Nonius 31Contact us
R0794MU2004925244.936.920.45Master 32, Nonius 31MU42S 49-32NContact us
R0758MU2004925244.936.920.45Master 32, Nonius 31MU42S 49-32NContact us
R0752MU20042.530.5232.7440.7418.37Master 32, Nonius 31Download
R0774MU2004835245.737.720.85Master 32, Nonius 31Download
R0852MU20084621.881.4973.4938.74Master 64, Nonius 63MU43S 85-64NDownload
R0851MU20084652.581.4973.4938.74Master 64, Nonius 63MU43S 85-64NDownload

Dimension parameter table:

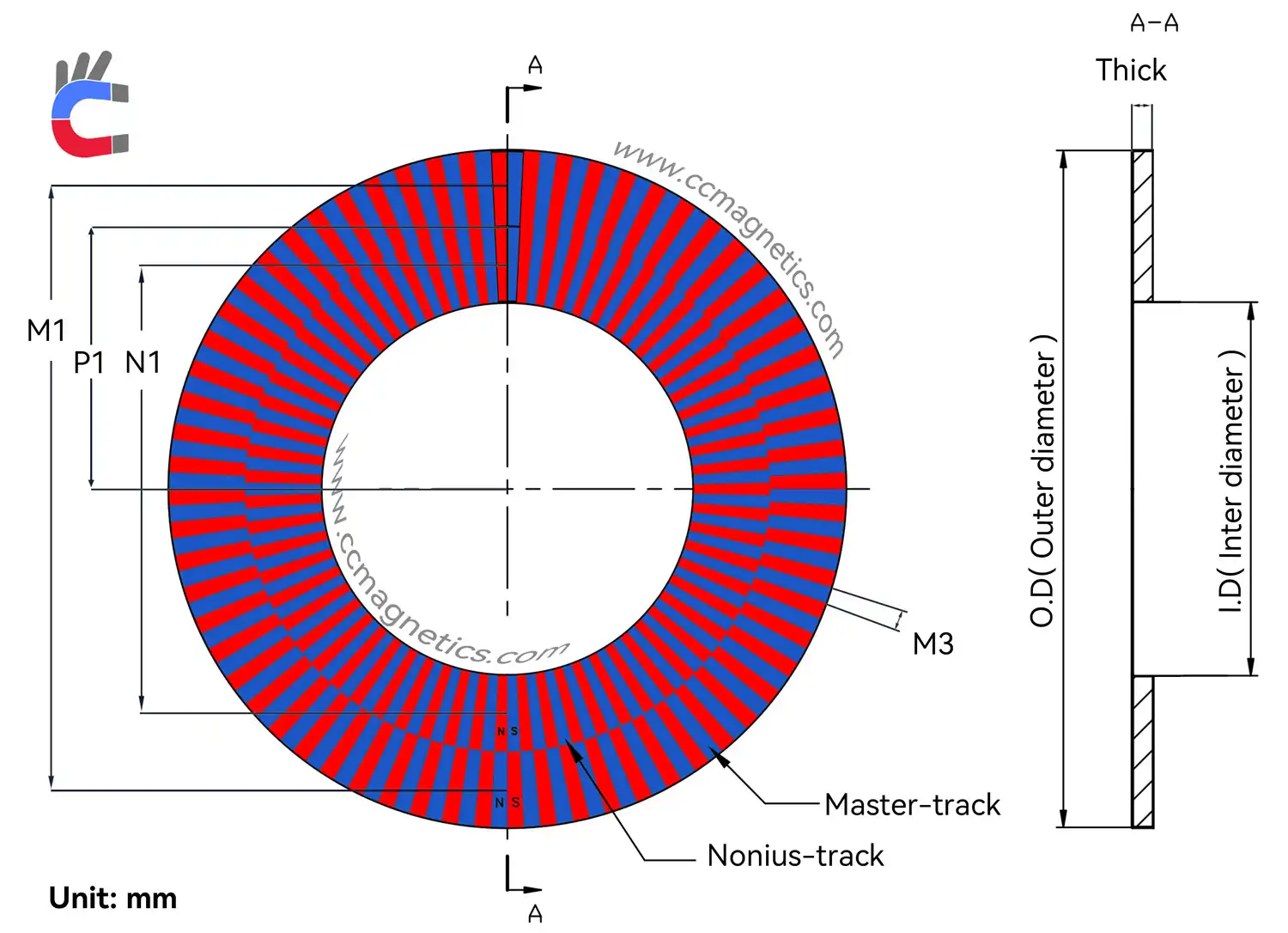

M1: Scanning diameter of Master Track
N1: Scanning diameter of Nonius Track
P1： Radial Position of Chip Center
(referred to axial center)
T： Thickness(Included the thickness of the metal carrier)
Pole pairs Number of pole pairs
Comp. IC Compatible IC

Comparison of Ferrite Encoder Ring and Rubber Encoder Ring

Ferrite Magnetic Encoder Ring
Ferrite Magnetic Encoder Ring
IC-MU: Absolute Encoder Magnet
Rubber Encoder Ring

Applicatiton

Other outer diameter magnetic rings

3 reviews for Magnetic Ring for IC-MU: Absolute Encoder Magnet

  1. davidfrisen18 –

    King Delivers. Smart people. High quality magnets. Good choice for your magnet requirements.

  2. protector3plus –

    service was fantastic ordered one day and received my magnets the next.

  3. awesomeava19 –

    Quick turnaround, quality product and fast postage.
