Motor feedback encoders,Metal carrier with vulcanized rubber magnet material,Metal Carrier,Main Track/Sub Track,Magnetically coded targets,Magnetically coded sensors
Global door-to-door delivery
Pre-delivery testing ensures accuracy
Best cost- performance value on market
Free, self-service search of CC's magnetic ring mold inventory.
CCmagnetics' core value is to sincerely help every customer, share our mold inventory information for free and transparently, and help customers save time and money in selecting the magnetic rings they need.
Description:

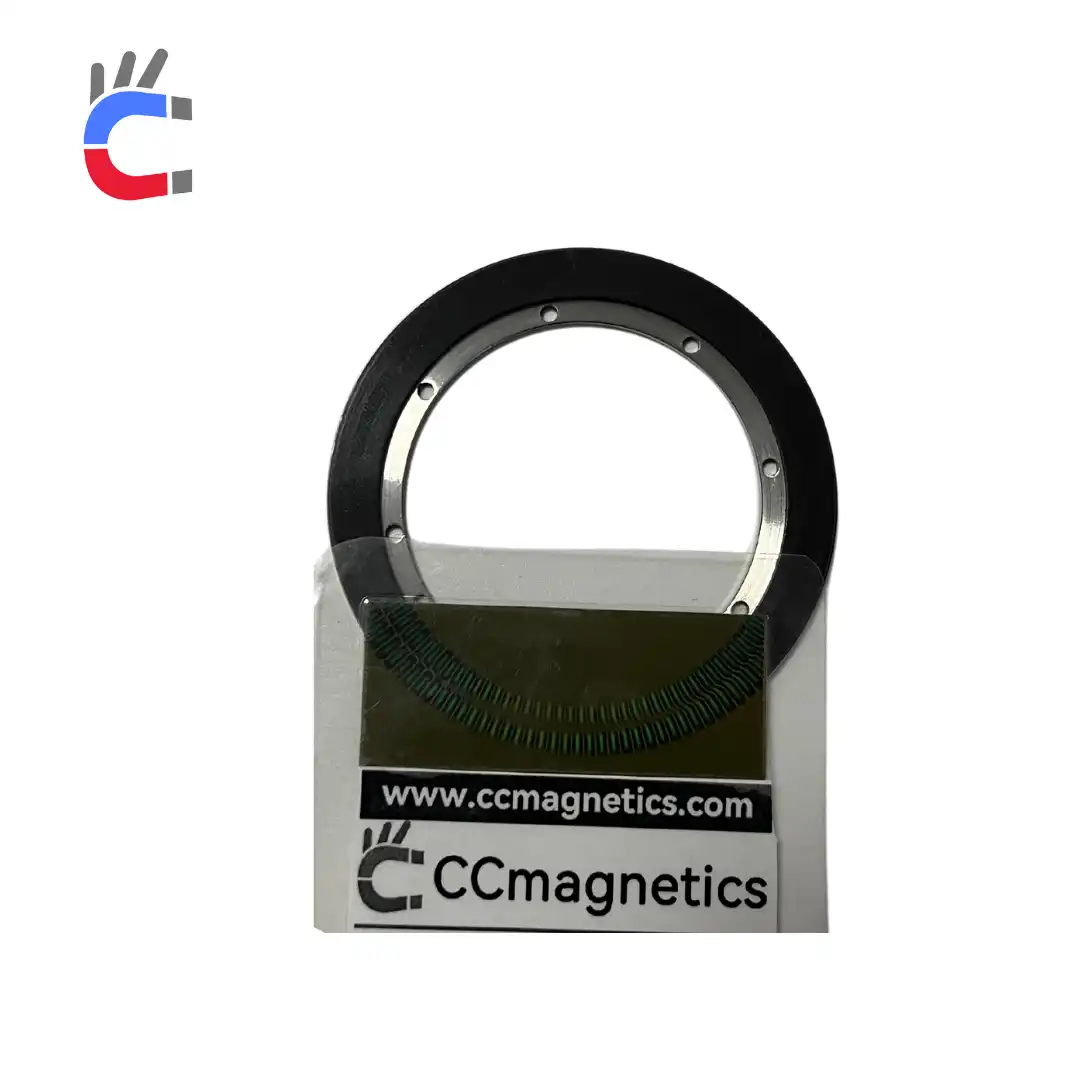

Rubber Magnetic Encoder Targets are an ideal solution for industrial applications. They are particularly suitable for robots in medical applications, automated production lines, or machine tools.
Our Vernier rings consist of two magnetic tracks. The main track, composed of several pairs of magnetized poles, enables the precise definition of position. The second track, known as the Nonius track, has one pole pair fewer than the main track. The principle is to calculate the offset between the two tracks to determine the absolute position.
The elastic properties of rubber, combined with good rubber - metal adhesion, ensure excellent performance in extreme environments.
Magnet Rings can be combined with the iC - MU series Hall - effect sensors to form absolute measurement systems.
Technical Support & Customization:
- For individual drawings of these magnetic rings/targets, please contact our sales team and provide the SKU number of the required product. Our team will promptly respond to your inquiry and provide the requested drawings.
- Guaranteed Precision: All rings meet strict IT7 tolerance standards for dimensional accuracy and concentricity.
- Axial Magnetization Direction: Ensures consistent and reliable magnetic field alignment.
- Quality Assurance: Obtained IATF16949 certification.
Parameter:
| SKU | O.D (mm) |
I.D (mm) |
Thick (mm) |
Master -track |
Nonius -track |
Comments |
|---|---|---|---|---|---|---|
| R0871 | 29 | 15 | 1.1 | 64 | 62 | Pole width: 1.28mm, mu2s 30-32n, compatible with ic-mu: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0661 | 29 | 10 | 2 | 64 | 62 | Pole width: 1.28mm, mu18s 30-32n, compatible with ic-mu: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0662 | 29 | 15 | 2.1 | 64 | 62 | Pole width: 1.28mm, compatible with ic-mu: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0872 | 28.5 | 16.5 | 2 | 64 | 62 | Pole width: 1.28mm, compatible with ic-mu: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0873 | 30 | 11 | 3 | 64 | 62 | Pole width: 1.28mm, compatible with ic-mu: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0814 | 56 | 38 | 1.1 | 128 | 126 | Pole width: 1.28mm, mu35s 56-64n, compatible with ic-mu: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0805 | 55 | 35 | 2.5 | 128 | 126 | Pole width: 1.28mm, compatible with ic-mu: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0813 | 56 | 37 | 12.6 | 128 | 126 | Pole width: 1.28mm, compatible with ic-mu: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0811 | 56 | 35 | 2 | 128 | 126 | Pole width: 1.28mm, compatible with ic-mu: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0866 | 53 | 40 | 3.5 | 128 | 126 | Pole width: 1.28mm, compatible with ic-mu: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0801 | 54.7 | 40 | 2 | 128 | 126 | Pole width: 1.28mm, compatible with ic-mu: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0874 | 18 | 8 | 2 | 32 | 30 | Pole width: 1.5mm, compatible with ic-mu150: 16-pole pairs in master-track, 15-pole pairs in nonius-track. |
| R0875 | 20 | 7 | 2 | 32 | 30 | Pole width: 1.5mm, compatible with ic-mu150: 16-pole pairs in master-track, 15-pole pairs in nonius-track. |
| R0715 | 34 | 20 | 11 | 64 | 62 | Pole width: 1.5mm, mu36s 35-32n, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0714 | 34 | 18 | 1.1 | 64 | 62 | Pole width: 1.5mm, mu28s 34-32n, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0876 | 34 | 18 | 5 | 64 | 62 | Pole width: 1.5mm, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0684 | 31.5 | 19.5 | 2 | 64 | 62 | Pole width: 1.5mm, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0721 | 35 | 23 | 2 | 64 | 62 | Pole width: 1.5mm, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0703 | 33 | 20 | 2 | 64 | 62 | Pole width: 1.5mm, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0877 | 39 | 20 | 2 | 64 | 62 | Pole width: 1.5mm, compatible with ic-mu150: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0878 | 64 | 47.4 | 1.1 | 128 | 126 | Pole width: 1.5mm, compatible with ic-mu150: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0838 | 68 | 55 | 3.5 | 128 | 126 | Pole width: 1.5mm, compatible with ic-mu150: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0829 | 64 | 45 | 2.5 | 128 | 126 | Pole width: 1.5mm, compatible with ic-mu150: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0879 | 63 | 46 | 2 | 128 | 126 | Pole width: 2mm, compatible with ic-mu150: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0529 | 22 | 6 | 2 | 32 | 30 | Pole width: 2mm, compatible with ic-mu200: 16-pole pairs in master-track, 15-pole pairs in nonius-track. |
| R0880 | 22 | 8 | 2 | 32 | 30 | Pole width: 2mm, compatible with ic-mu200: 16-pole pairs in master-track, 15-pole pairs in nonius-track. |
| R0881 | 22 | 10 | 2 | 32 | 30 | Pole width: 2mm, compatible with ic-mu200: 16-pole pairs in master-track, 15-pole pairs in nonius-track. |
| R0882 | 25 | 11.5 | 2 | 32 | 30 | Pole width: 2mm, compatible with ic-mu200: 16-pole pairs in master-track, 15-pole pairs in nonius-track. |
| R0760 | 44.5 | 25 | 1.4 | 64 | 62 | Pole width: 2mm, mu37s 45-32n, compatible with ic-mu200: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0778 | 49 | 25 | 2 | 64 | 62 | Pole width: 2mm, compatible with ic-mu200: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0758 | 49 | 25 | 2 | 64 | 62 | Pole width: 2mm, compatible with ic-mu200: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0883 | 49 | 31.5 | 2 | 64 | 62 | Pole width: 2mm, compatible with ic-mu200: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0774 | 48 | 35 | 2 | 64 | 62 | Pole width: 2mm, compatible with ic-mu200: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0752 | 42.5 | 30.5 | 2 | 64 | 62 | Pole width: 2mm, compatible with ic-mu200: 32-pole pairs in master-track, 31-pole pairs in nonius-track. |
| R0852 | 84 | 62 | 1.8 | 128 | 126 | Pole width: 2mm, compatible with ic-mu200: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
| R0851 | 84 | 65 | 2.5 | 128 | 126 | Pole width: 2mm, compatible with ic-mu200: 64-pole pairs in master-track, 63-pole pairs in nonius-track. |
Comparison of Ferrite Encoder Ring and Rubber Encoder Ring
| Parameter | Ferrite Encoder Ring | Rubber Encoder Ring |
|---|---|---|
| Operating Temperature Range | -40°C to 250°C / -40℉ ~ +392℉ | -20°C to 80°C / -4℉ ~ +176℉ |
| High temperature Resistance | High | Low |
| Vibration Resistance | Low | High |
| Unit Price | Low | High |
| Technology Maturity | Mature | Emerging |
| Corrosion Resistance | High | High |
| Environmental Resistance | Easy to break due to vibration | Excellent |
| Customization | Easy for large quantities; high-cost for small quantities |
Customizable;few manufacturers can guarantee the accuracy and resolution required. |
| Magnetization | Easy | Hard |
Our Commitment:
CCmagnetics is dedicated to building long-term, mutually beneficial partnerships with robotics developers, labs, studios, and companies of all sizes worldwide. We offer:
- Highly Competitive Pricing: Cost-effective solutions without compromising quality.
- Reliable Performance: Rigorous quality control ensures durable and precise products.
