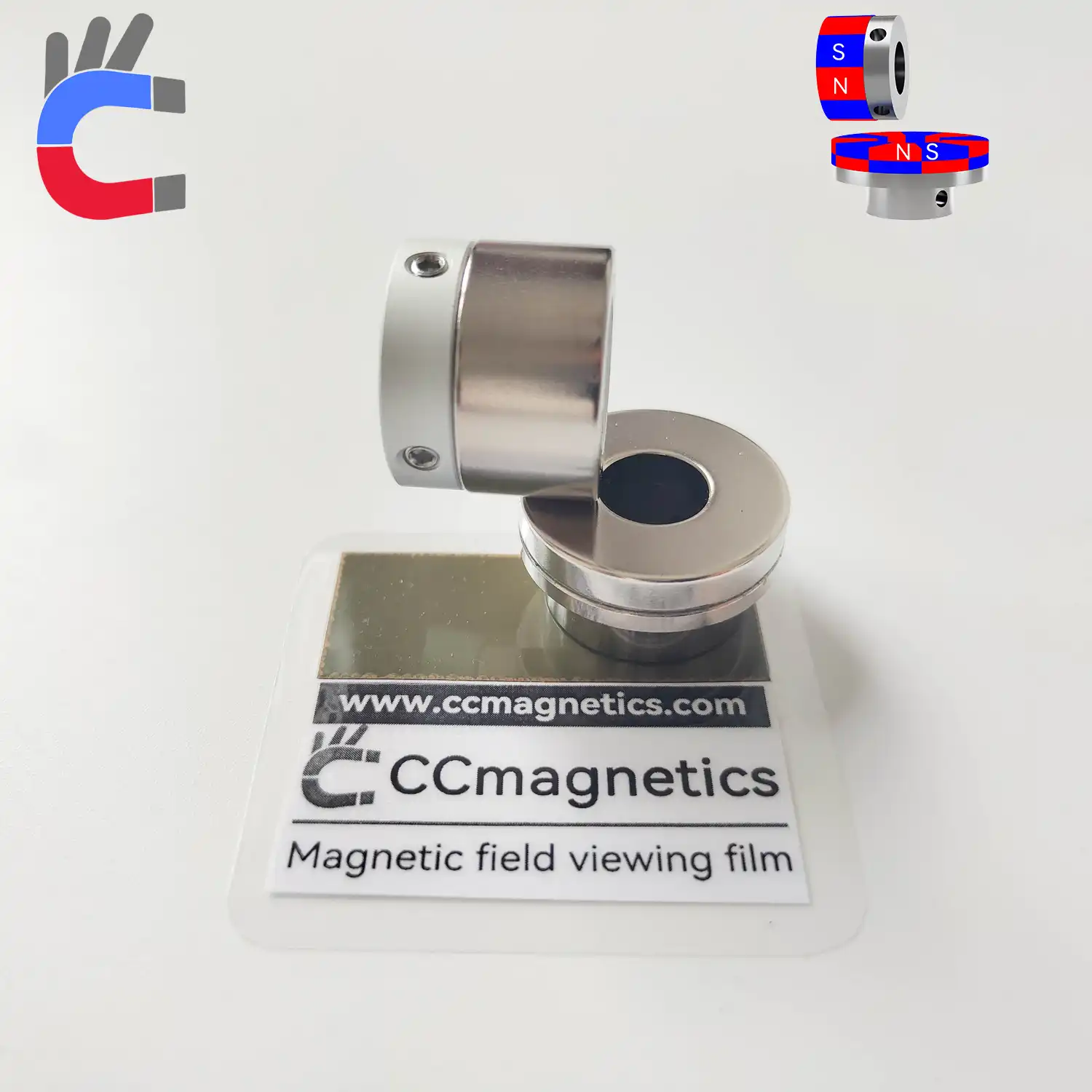

What are magnetic bevel gears?

Magnetic bevel gear is another type of non-contact right-angle magnetic transmission system. Unlike the CT (cross type) series, it differs in terms of torque and transmission ratio. A magnetic bevel gear/coupling consists of a disc coupling and a PT (cross type) series magnetic pinion gear. The standard material for the surface is stainless steel 304, but PVC (Polyvinyl chloride) and stainless steel 316L can also be customized. The standard internal magnet material is neodymium iron boron, but samarium cobalt magnet can also be customized, allowing the high-temperature resistance to be increased from 80C (176F) to 280C (536F).

They are non-contact power transmission mechanisms making use of the attraction and repulsion properties of the magnets.

This component facilitates contactless 90° drive transmission across intersecting axes. The clearance can be adjusted freely via the set screw on the holder, allowing for fine-tuning of the torque.

Magnetic bevel gears application:

Transportation equipment, conveyor

You may eliminate micro-step vibration or driving noise caused by mechanical gears.Recommended for presision devices handling due to less influence of vibration, no wear-out of gear.

Magnetic bevel gears parameter



PN1	Y	Z	PN2	C	D	SCM	SFM	MC	DR	Tq1	Tq5	E	F
X	30	8~15	B	26	8~15	A/S/L/P	A/B	F	1:1	0.45N.m	0.04N.m	16	21
X	35	8~15	B	30	10~16	A/S/L/P	A/B	F/H	5:4	0.7N.m	0.06N.m	16	20
X	47	12~20	B	35	15~22	A/S/L/P	A/B	F/H	1:1	1.3N.m	0.18N.m	21	25
X	60	15~25	B	45	15~25	A/S/L/P	A/B/C	F/H	1:1	2.5N.m	0.34N.m	25	30
X	60	15~22	B	50	15~30	A/S/L/P	A/B/C	F/H	1:1	2.6N.m	0.9N.m	33	45
X	65	15~25	B	45	15~25	A/S/L/P	A/B/C	F	1:1	3.1N.m	0.8N.m	24	30
X	75	18~25	B	52	15~30	A/S/L/P	A/B/C	F	1:1	4.2N.m	1.1N.m	27	33
X	80	15~22	B	60	20~35	A/S/L/P	A/B/C	F	4:3	6N.m	1.4N.m	33	45
X	100	15~22	B	60	20~35	A/S/L/P	A/B/C	F	2:1	7.1N.m	1.75N.m	33	45
X	130	40	B	90	40	A/S/L/P	A/B/C	F	1:1	11N.m	2.8N.m	45	70

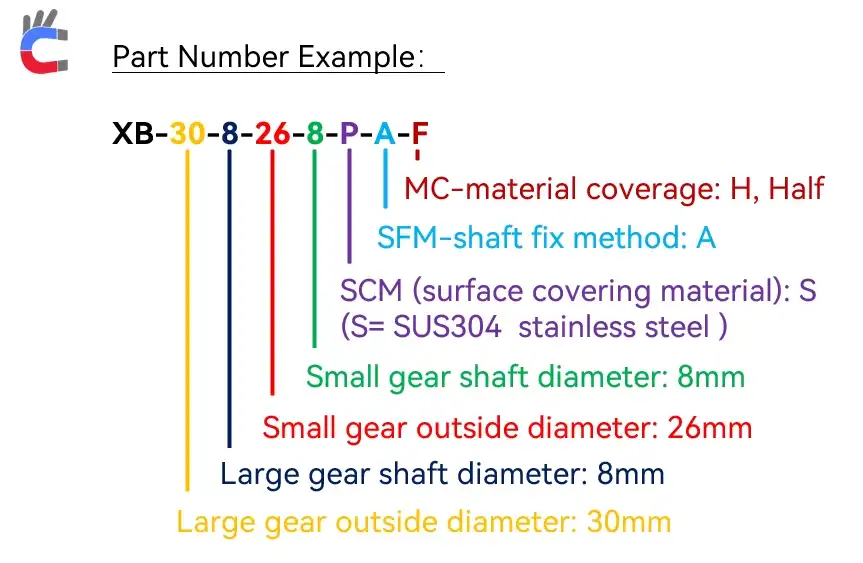

No.	Term	Description	Notes
1,2	PN1, PN2	Part number	PN1 (Large magnetic gear / coupling) PN2 (Small magnetic gear / coupling)
3,4,5,6	Y,Z,C,D	Unit of length on the drawing.	Unit of length is millimeters.
7	SCM	Surface Covering Material	A=A6061 (aluminum alloy), S=SUS304 (stainless steel), L=SUS316L(stainless steel), P=PVC（Polyvinyl Chloride).
8	SFM	Shaft Fixing Method	A or C, refer to the picture for details.
9	MC	Material Coverage	F= Fully, H= Half
-	DR	Drive ratio	Magnetic drive ratio
-	Tq1	Torque	The torque value shown is for a 1mm gap.
-	Tq5	Torque	The torque value shown is for a 5mm gap.

Shaft fixing method

Advantages of magnetic gears products

• Very low noise and vibration
• No wear No dust
• No heat generation
• Oil-free
• Power transmission through wall
• Torque limiter function
• Easy attaching and detaching
• Large tolerance for declination and eccentricity

Support a wide variety of magnetic gears

1. In order to meet the customer s specifications such as anti-corrosion and heat resistance, We offer a variety of materials and surface treatments suited for various atmospheres.
2. We can customize magnets with high magnetic force and anti-rust effects are selected depending on the applications.
3. We are willing to accept the unitization request and co-develop with customers.
