Description:

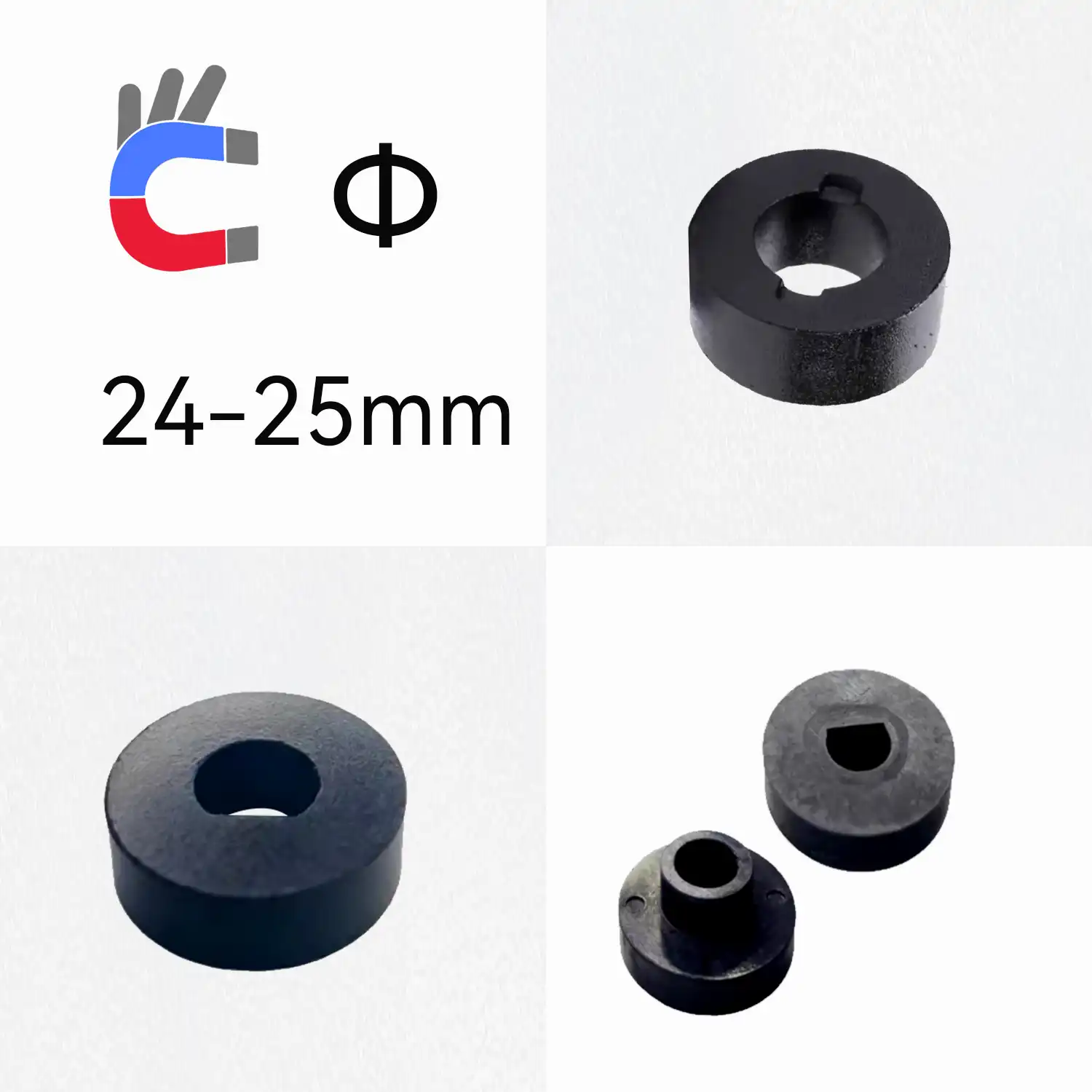

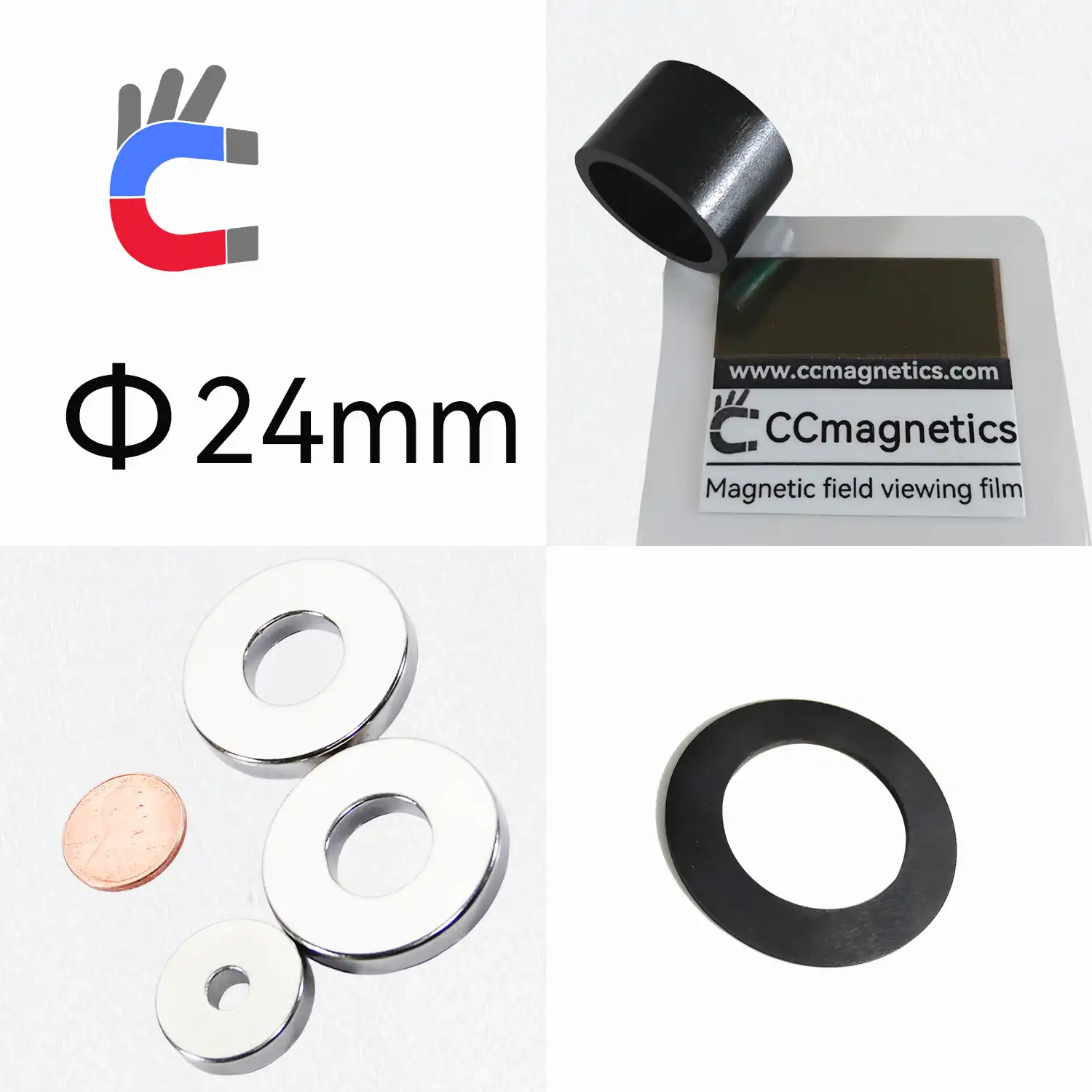

CCmagnetics is a leading supplier of 24mm-25mm magnetic rings, perfectly suited for a variety of applications including motor speed sensing (both induction and DC motors), Hall effect speed sensing, Hall effect encoding, and automotive valve control. Whether you need magnetic rings for motor hall sensing or wind turbine speed measurement, our extensive inventory and customization options can meet your specific requirements. Inquire today to discuss your project.
Specification:
Magnetization method
Axial, Rotary
Radial, Rotary
Inter, Radial, Rotary
O.D (mm) |
I.D (mm) |
Thick (mm) |
Pole Qty | Material | Surface magnetic field |
Magnetization method |
Comments |
---|---|---|---|---|---|---|---|
24 | 8.85 | 8 | 20P | Bonded neodymium magnets |
170-175mT | Rotary,Radial | Magnetic ring for slotted motor speed measurement |
24 | 10 | 8 | 20P | Bonded neodymium magnets | 170-175mT | Rotary,Radial | Magnetic ring for slotted motor speed measurement |
24 | 8 | 10 | 10P | Injection molded ferrite magnets | 70-76mT | Rotary,Radial | Magnetic ring for DC geared motor |
24 | 8 | 9.5 | 6P | Injection molded ferrite magnets | 60-70mT | Rotary, Axial | Hall effect sensor magnetic ring |
24.2 | 12.4 | 10 | 8P | Bonded neodymium magnets | 300-310mT | Rotary,Radial | Magnetic rotor for gear pump |
24.2 | 12.4 | 17.5 | 4P | Bonded neodymium magnets | 300-320mT | Rotary,Radial | Magnetic rotor for diaphragm pump motor |
24.2 | 12.1 | 22.8 | 4P | Bonded neodymium magnets | 300-310mT | Rotary,Radial | Magnetic rotor for magnetic pump |
24.6 | 12 | 26 | 8P | Ferrite magnets | 160-170mT | Rotary,Radial | Miniature water pump rotor (with magnets) |
25 | 2.35 | 42.37 | 4P | Ferrite magnets | 50-60mT | Rotary,Radial | Anemometer for wind speed measurement (with magnets) |
25 | 12.6 | 42.37 | 4P | Ferrite magnets | 50-60mT | Rotary,Radial | Anemometer for wind speed measurement (with magnets) |
25 | 3.2 | 14.5 | 8P | NdFeB plastic coating | 300-320mT | Rotary,Radial | Magnets for inkjet printer pressure pump |
25 | 3.9 | 14.5 | 8P | NdFeB plastic coating | 300-320mT | Rotary,Radial | Magnets for inkjet printer pressure pump |
25 | 3.2 | 19 | 4P | NdFeB plastic coating | 300-320mT | Rotary,Radial | Magnets for inkjet printer pressure pump |
25 | 3.9 | 19 | 8P | NdFeB plastic coating | 300-320mT | Rotary,Radial | Magnets for inkjet printer pressure pump |
25 | 3.9 | 14.5 | 8P | NdFeB plastic coating | 300-320mT | Rotary,Radial | Magnets for inkjet printer pressure pump |
25 | 5 | 5 | 4P | Ferrite magnets | 50-60mT | Rotary,Radial | Magnetic ring for signal motor |
25 | 8 | 2.5 | 24P | Injection molded ferrite magnets | 65-75mT | Rotary, Axial | Hall effect sensor magnet for motor |
25 | 6 | 5 | 16P | Ferrite magnets | 120-125mT | Rotary,Radial | Hall effect sensor magnet for motor |
25 | 6.7 | 6.4 | 8P | Injection molded neodymium magnets | 120-130mT | Rotary, Inner, Radial | Speed sensor magnet for DC motor |
25 | 7.5 | 6.4 | 8P | Injection molded neodymium magnets | 120-130mT | Rotary, Inner, Radial | Speed sensor magnet for DC motor |
25 | - | 21 | 16P | Injection molded ferrite magnets | 160-170mT | Rotary,Radial | Rotor magnet for motor |
25.5 | 10.1 | 5 | 10P | Injection molded ferrite magnets | 75-80mT | Rotary,Radial | Magnetic ring for DC motor speed measurement |
25.5 | 17 | 3.8 | 8P | Injection molded ferrite magnets | 65-70mT | Rotary,Radial | Hall effect sensor magnet for motor |
25.6 | 13.5 | 28 | 12P | Ferrite magnets | 50-60mT | Rotary,Radial | Rotor magnet for automotive throttle valve |
Millimeters to inches conversion table
The fraction inches are rounded to 1/64 resolution.
Millimeters(mm) | Inches(") (decimal) |
Inches(") (fraction) |
---|---|---|
0.01mm | 0.0004″ | 0″ |
0.1 mm | 0.0039 ″ | 0 ″ |
1 mm | 0.0394 ″ | 3/64 ″ |
2 mm | 0.0787 ″ | 5/64 ″ |
3 mm | 0.1181 ″ | 1/8 ″ |
4 mm | 0.1575 ″ | 5/32 ″ |
5 mm | 0.1969 ″ | 13/64 ″ |
6 mm | 0.2362 ″ | 15/64 ″ |
7 mm | 0.2756 ″ | 9/32 ″ |
8 mm | 0.3150 ″ | 5/16 ″ |
9 mm | 0.3543 ″ | 23/64 ″ |
10 mm | 0.3937 ″ | 25/64 ″ |
20 mm | 0.7874 ″ | 25/32 ″ |
30 mm | 1.1811 ″ | 1 3/16 ″ |
40 mm | 1.5748 ″ | 1 37/64 ″ |
50 mm | 1.9685 ″ | 1 31/32 ″ |
60 mm | 2.3622 ″ | 2 23/64 ″ |
70 mm | 2.7559 ″ | 2 3/4 ″ |
80 mm | 3.1496 ″ | 3 5/32 ″ |
90 mm | 3.5433 ″ | 3 35/64 ″ |
100 mm | 3.9370 ″ | 3 15/16 ″ |
Note:If you require sensor recommendations, please contact our sales representatives and we will provide you with suggestions for pairing them.
FAQs:
Please send the SKU number and quantity of the magnetic rings you want from the list.
Your salesperson will send you a price quote and payment options (T/T 100% upfront or credit card 100% upfront).
- In-stock items: Ship immediately after payment.
- Out-of-stock items: Ship within 30 days after payment.
Our magnetic rings have a key benefit: transparent costs for molds and magnetizing coils. We don't charge extra for these.
For small sample orders (around 10 pieces), this stock is usually leftover from larger production runs. Please pay quickly to secure your stock. We don't start production for small orders; it's not cost-effective for us.
We usually start production for orders over 2k-10k pieces to manage costs. If your order is small and not confirmed quickly, you might miss out on current stock.
Sizes: All lengths are in millimeters (mm) by default.
Number of poles:

- The Master-track refers to the main magnetic track's pole count on a ring magnet. Most ring magnets, like those for motors or incremental encoders, have only one magnetic track.
- However, absolute encoder ring magnets or encoder ring magnets with marker points also have a Nonius-track. This means they have two magnetic tracks, as shown in the picture.

- Ferrite magnets are also called sintered ferrite or hard ferrite magnets. They look and are made like ceramics, so some call them ceramic magnets.These magnets are cheap to make in large amounts, even though the mold costs are high. They are very good at resisting rust and high temperatures, up to 250℃.Ferrite magnets are accurate and low-cost for encoders. But, they can break easily if shaken a lot, like in outdoor robots. For those, Vulcanized rubber magnet material is more stable.
- Injection molded ferrite magnets are made by mixing ferrite magnetic powder with plastic binders like Nylon (PA6 or 12) or PPS. This mixture is then injection molded, meaning it's shaped using a mold.These magnets can even be molded directly onto a metal shaft. They can work in temperatures up to 150°C.

Bonded neodymium magnets are made by mixing neodymium magnetic powder with a binder.
Simply put, they are injection molded, which means they contain a binder. About 80% of the magnet is neodymium powder, and the remaining 20% is binder.
Their benefits include high dimensional accuracy, great design flexibility, and good mechanical strength.
Injection molded neodymium magnets are made by mixing neodymium magnetic powder with thermoplastic. This mix is then injection molded. These magnets are stronger than injection molded ferrite magnets.
Injection molded neodymium magnets can be made into many shapes. They can be small or irregular. You can magnetize them with multiple poles or complex patterns. They are also very accurate and consistent in shape.
These magnets can be molded directly onto motor cores or metal shafts. This saves assembly costs. They are seen as a stronger option than injection molded ferrite magnets. They can work in temperatures up to 180℃.


Sintered NdFeB magnets are also called Sintered Neodymium magnets. These are the strongest known permanent magnets. They are made from neodymium (Nd), iron (Fe), boron (B), and other rare earth elements.
These magnets create very strong magnetic fields and stay magnetic at room temperature. They can be made into many shapes. This makes them great for many uses, especially for high-end commercial motors.
Sintering is how they are made. Powdered materials are heated until they merge. This process makes the magnets stronger and more effective.
However, these magnets can corrode easily and are affected by high temperatures. So, they are usually coated (often with a nickel-copper-nickel layer) to protect them. Adding heavy rare earth elements also helps them resist higher temperatures.

- Vulcanized rubber magnet material is made when magnetic powder is added to rubber during a process called vulcanization. This process changes the rubber's structure, making it much stronger, more elastic, and more stable.Vulcanized rubber magnets are often used for magnetic targets on sports robots. They are flexible and don't break easily from shocks.
- Rubber magnets are made from magnetic powder mixed with synthetic rubber. They are formed by extrusion, calendering, or injection molding. You can make them into strips, rolls, sheets, blocks, rings, and many other shapes. Their main advantages are that they are flexible and can be made into various shapes.However, their disadvantage is that they are not very strong (they don't have high remanence) compared to Neodymium magnets. For encoders, regular rubber magnets can't meet high precision needs. They are only good for single-track incremental encoders.
