Description:

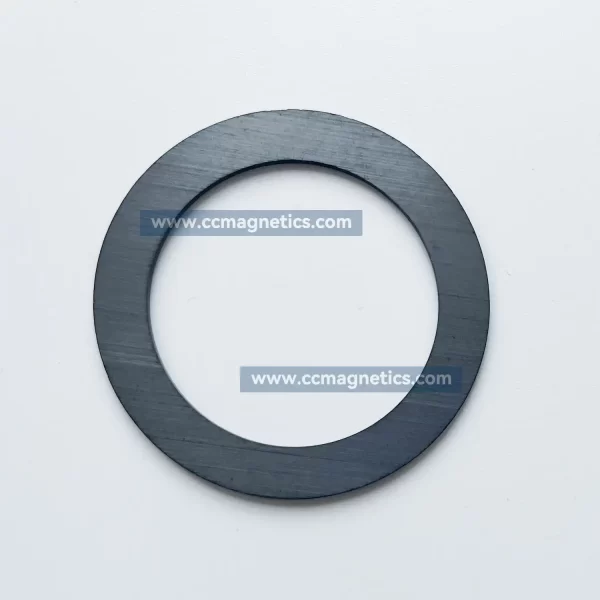

We can offer MU35S_56-64N: Magnetic Target for Precise Position Sensing, We are Sensor Magnetic Target Manufacturer.
The MU35S_56-64N is a high-performance magnetic target designed for precise position sensing applications. Featuring a compact 56mm outer diameter and a rugged construction, this target is ideal for use in a variety of demanding environments.We can supply the magnetic target of both ferrite and vulcanized rubber magnetic target.

Specifications:

Outer Diameter: 56mm
Shaft Diameter: 41mm
Thick: 1.5-2mm
Magnet Material: Ferrite
Number of Poles: 128Poles / 126Poles
Compatible Encoder: iC-MU
Metal Carrier: None, You can customize metal carrier for ferrite ring.

Key Features:

Accurate and Reliable: The MU35S_56-64N utilizes 128 master poles and 126 nonius poles to provide precise and reliable position feedback.
Durable Construction: The target's vulcanized rubber magnets and SUS430 stainless steel housing ensure long-lasting performance and resistance to harsh conditions.
Versatile Compatibility: Compatible with iC-MU nonius encoders, the MU35S_56-64N offers a wide range of application possibilities.

Applications:

Robots / Robot arm: The MU35S_56-64N is a popular choice for robots, providing accurate feedback for precise movement and navigation.

Product accuracy test screenshots
