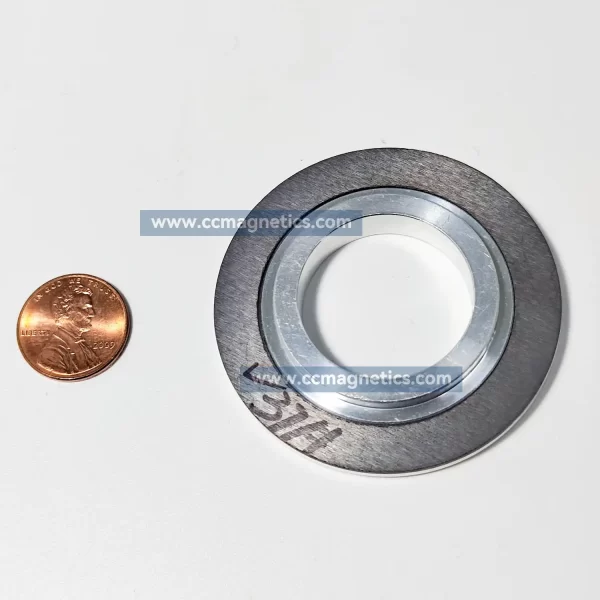

Rotary Nonius Magnetic Scale, MU18S_30-32N

$13.95 – $29.95

  • Global Door-to-Door Delivery;
  • Pre-Delivery Testing Ensures Accuracy;
  • Minimum Order Quantity: 5pcs;
  • Best cost performance value on Market;
  • Comes with essential tools;
  • Customizable metal carrier (various diameters);
  • Volume discounts available;
CATLOGUE (PDF)
inquiry
SKU: R0873 Category: Tag: Brand:

MU35S_56-64N,2-Tracks Axial Magnetic Target for Use with IC-Mu Nonius Encoder, iC-MU Magnetic target, Rubber magnetic target, rubber encoder magnet ring, iC-Haus singleturn encoders, iC-Haus Multi-Turn encoders, Injection plastic-bonded ferrite ring magnet, vulcanized rubber magnetic target, 2-Track radial magnetic target for use with iC-MU, Double-track Rubber Magnetic Ring For Encoder Sensors

No unnecessary tooling fees

Global door-to-door delivery

Pre-delivery testing ensures accuracy

Bookmark this page for hassle-free R&D.

We continuously update our magnet and magnetic ring specifications to streamline engineering selection. At CCmagnetics, tooling cost should never block innovation.
Our promise: Zero tooling costs for all items in our datasheet, always—regardless of your MOQ.

Description:

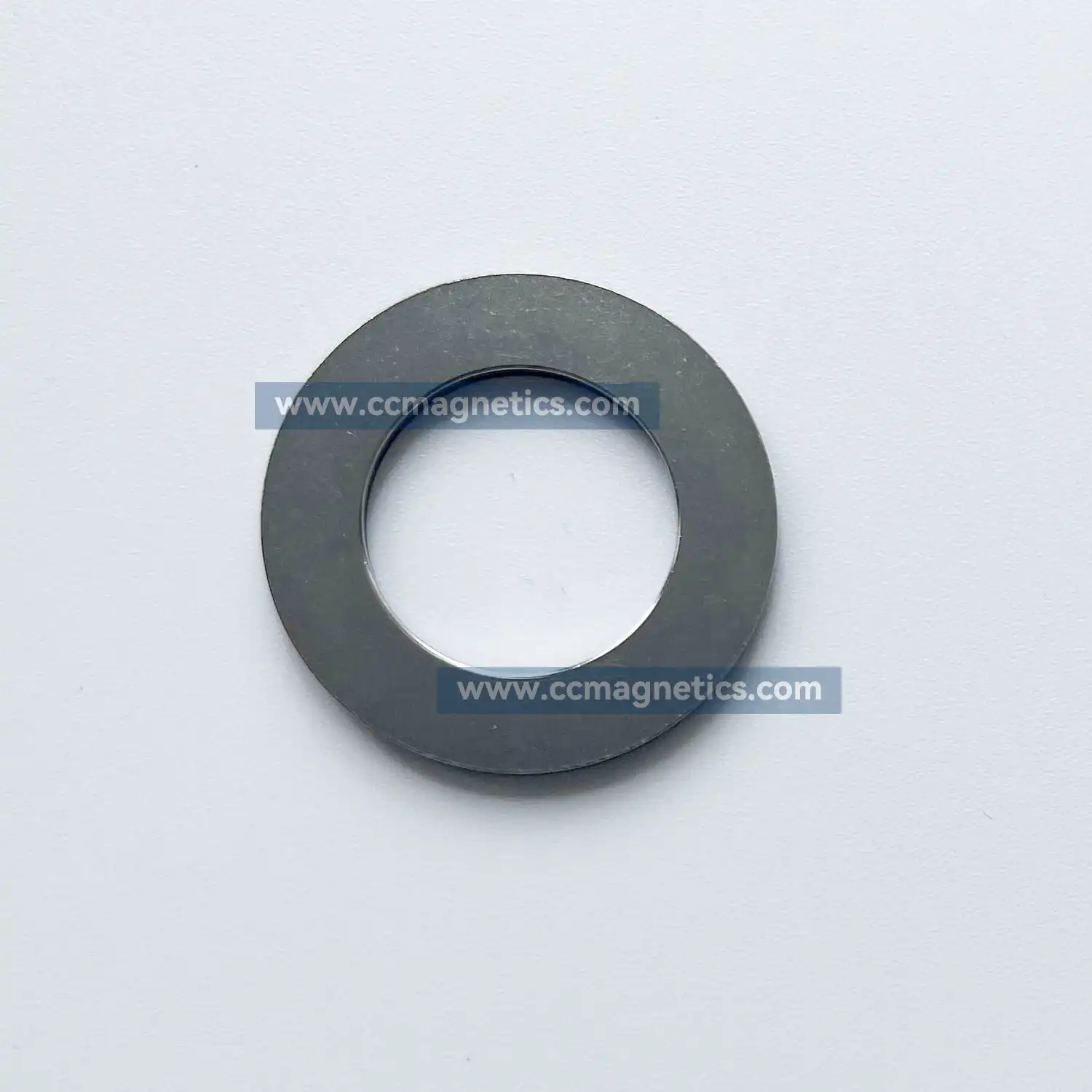

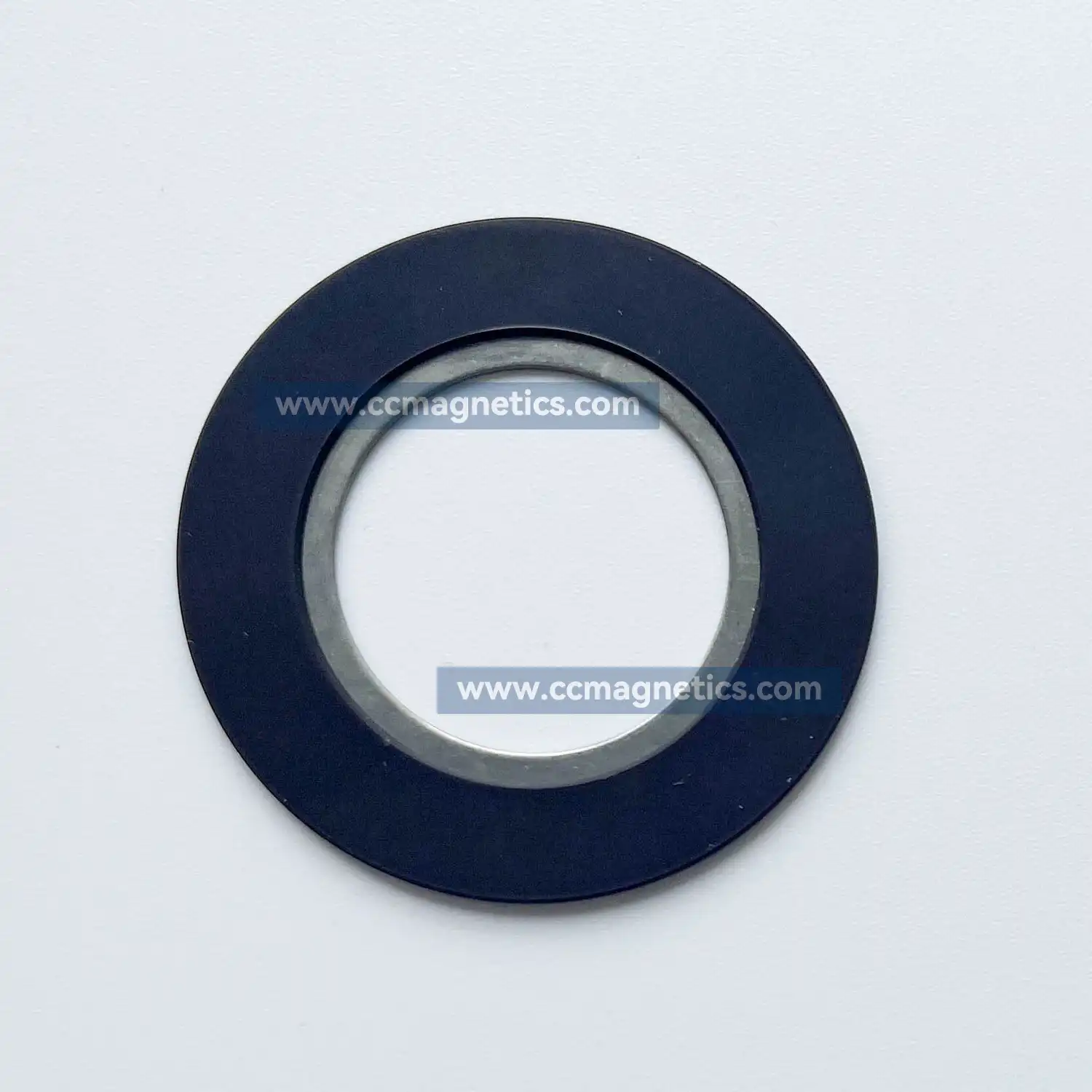

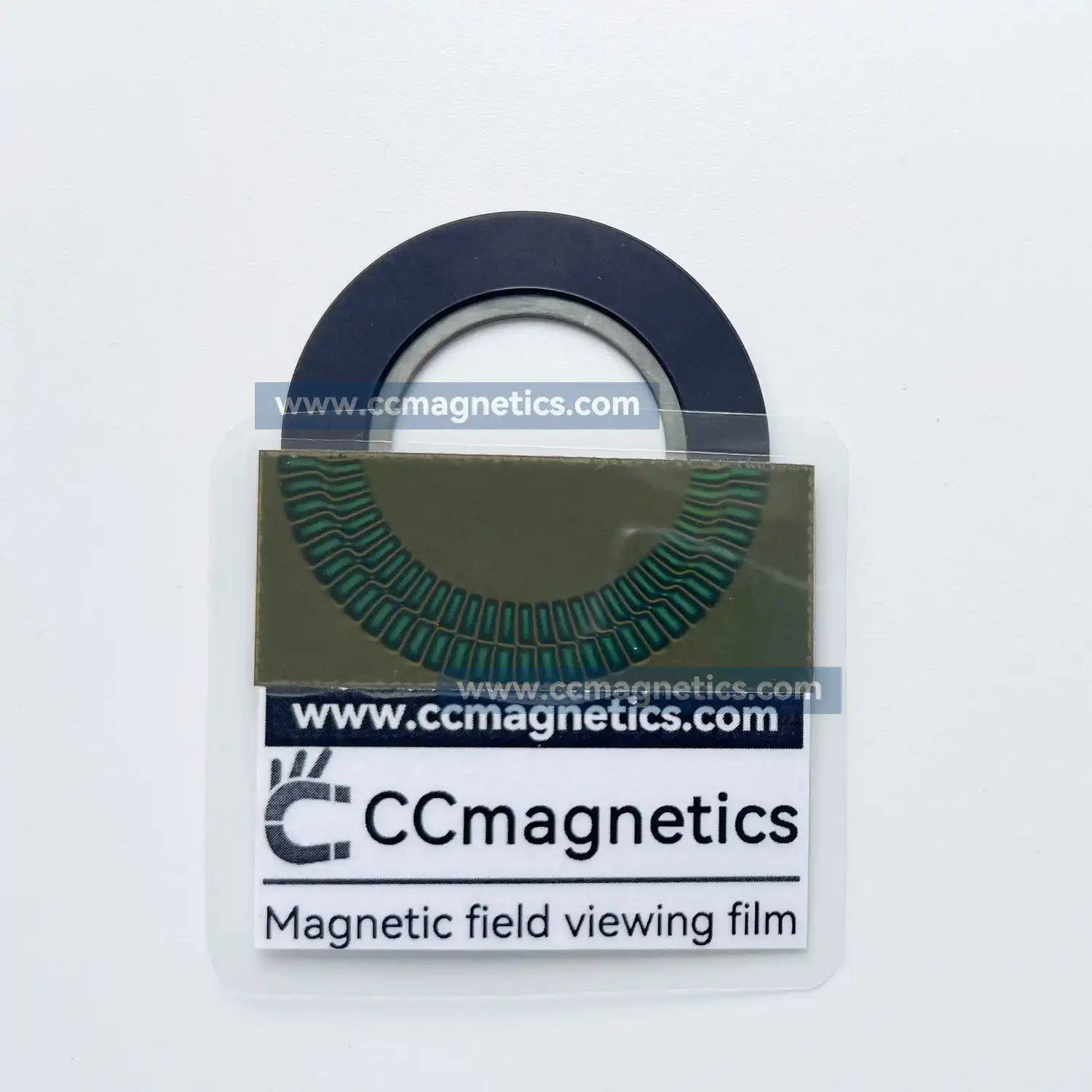

R0873 (MU18S 30-32N) is a magnetic target suitable for the iC-MU. The disc comprises of a two track nonius code with 31 polepairs on the nonius track and 32 polepairs on the master track. The outer diameter is 30 mm.

R0873 is manufactured using a vulcanized rubber process. Our process is globally leading and meets the requirements of robot design teams and studios worldwide.

This product is ideal for precision encoding tasks, offering reliable and accurate magnetic tracking for industrial and technical use.

Item
NO.		 Parameter Comments Typ. Tolerance Unit
A1 Radial Position of Chip Center referred to axial center 11. 24 mm
A2 Distance Package Surface DFN16-5x5 referred to magnetic coating surface 0. 3 mm
A3 Total height height of magnetic material and carrier 3 ±0.1 mm
B1 Nonius-track diameter inner magnetic track diameter 18. 88 mm
B2 Master-track diameter outer magnetic track diameter 26. 08 mm
B3 Outer Diameter of magnetic material magnetic material 30 ±0.2 mm
B4 Inner Diameter of magnetic material magnetic material 15 ±0.2 mm
B5 Inner Diameter of metal carrier metal carrier 11 +0.05 mm
B6 Out diameter of metal carrier metal carrier 30 mm
M1 Width of single nonius-track pole 0. 96 mm
M2 Width of single master-track pole 1. 28 mm
Hc Coercive force at 20°C 170 kA/m
Br Remanence at 20°C 20 mT
T Operating temperature -35- 120 ℃
AMP Magnetic field amplitude when the air gap 0.4mm 3 mT
