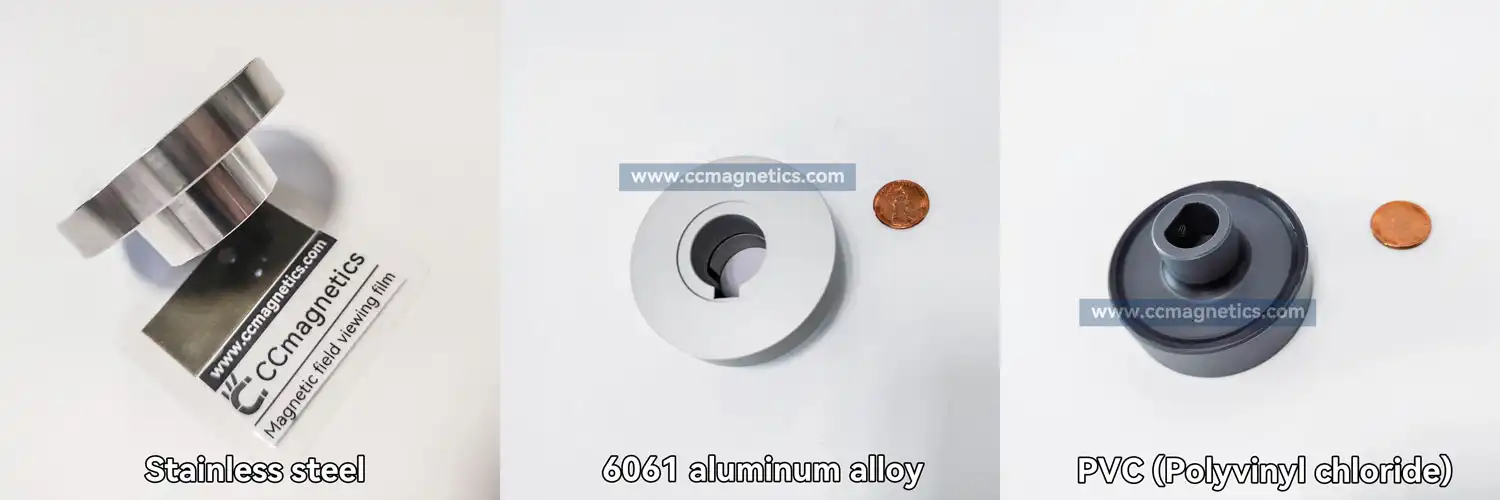

Standard XD-series magnetic disc couplings configuration materials: Stainless steel 304 (UNS S30400) and neodymium permanent magnets.
Configuration materials: Stainless steel 304 (UNS S30400) and neodymium permanent magnets.
| Disc coupling type | Surface material | Magnet coating | Magnet type | Shaft fixing method | Operating Temp |
Features |
|---|---|---|---|---|---|---|
| Default configuration | SAE 304 stainless steel | Ni-Cu-Ni | NdFeB | Type-A | 80C(176F) | Most cost-effective, applicable to most scenarios. |
| Customization Option A | SAE 316L stainless steel | Ni-Cu-Ni | SmCo magnets | TypeA / C | 280C (536F) | Rated up to 280C (536F), it can work in seawater. |
| Customization Option A | SAE 316L stainless steel | Ni-Cu-Ni | SmCo magnets | TypeA / C | 280C (536F) | Rated up to 280C (536F), it can work in seawater. |
| Customization Option B | 6061 aluminium alloy | Ni-Cu-Ni | NdFeB magnets | TypeA / C | 80C(176F) | Corrosion resistant and light weight. |
| Customization Option C | PVC(Polyvinyl chloride) | None | NdFeB magnets | TypeA / C | 140C (284F) | Flame retardant, not easily corroded by acid or alkali. |
Additional Material Options:
- Disc magnetic disc couplings made of stainless steel 316L.Materials: Stainless steel 316L (UNS S31603) and neodymium permanent magnets.
Magnetic Disc Couplings
$39.95 – $399.95Advantages:
- Excellent corrosion resistance
- High strength and durability
- Easy to clean and maintain
- Can withstand high temperatures
- Hygienic and food-safe
- Can be used in seawater
Disadvantages:
- Relatively heavy
- Less ductile than some other metals
- Disc magnetic coupler made of PVC (Polyvinyl chloride).Materials: PVC (Polyvinyl chloride) and neodymium permanent magnets.
Magnetic Disc Couplings
$60.95 – $300.95Advantages:
- Lightweight and easy to shape
- Corrosion resistant
- Good electrical insulator
Disadvantages:
- Not as strong as metals
- Can be susceptible to UV degradation
- Not suitable for high-temperature applications
- Can release harmful fumes when burned
- Disc magnetic shaft coupling made of Aluminum 6061 Alloy (UNS A96061).Materials: Aluminum 6061 Alloy (UNS A96061) + Neodymium permanent magnets.
Magnetic Disc Couplings
$19.95 – $399.95Advantages:
- Lightweight and strong
- Excellent corrosion resistance
- Good thermal conductivity
- Easily machinable and weldable
Disadvantages:
- Less strong than steel
- Can be susceptible to stress corrosion cracking
- Not as hard as some other metals
