Acceda a la tabla de datos más completa y actualizada diariamente en la web para anillos magnéticos de NdFeB diametrales de 2 polos. Diseñados para la precisión, sus campos magnéticos alternos los convierten en la opción definitiva para los sensores de efecto Hall (detección de velocidad y posición). También ofrecen un flujo excepcional para aplicaciones avanzadas, incluidos codificadores rotativos BLDC, acoplamientos magnéticos sin contacto para bombas de fluidos y actuadores robóticos. Explore las especificaciones exactas a continuación para impulsar su próxima innovación.
Sin costes de utillaje innecesarios
Entrega puerta a puerta a nivel mundial
Las pruebas previas a la entrega garantizan la precisión
Guarde esta página en sus marcadores para una I+D sin complicaciones.
Actualizamos continuamente nuestras especificaciones de imanes y anillos magnéticos para simplificar la selección de ingeniería. En CCmagnetics, los costes de utillaje nunca deben ser un obstáculo para la innovación.
Nuestra promesa: Cero costes de utillaje para todos los artículos de nuestra hoja de datos, siempre, independientemente de su MOQ.
¿Cómo funciona?

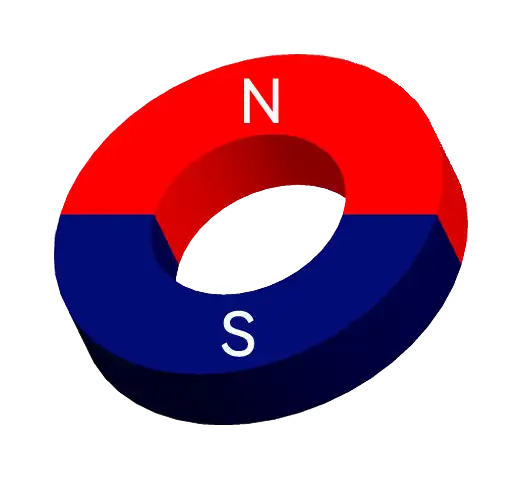

Diagrama de magnetización diametral de 2 polos
Tabla de tallas
| PN | O.D | I.D | T | MAG | SF | MATL | CMTS |
|---|---|---|---|---|---|---|---|
| R1741 | 1.5 | 0.4 | 0.8 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2249 | 2 | 0.8 | 0.8 | Radial | 100~500mT | Neodymium magnets | HP coating |
| R2202 | 2 | 1 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Zn coating |
| R2151 | 2 | 1 | 19.5 | Radial | 100~500mT | Neodymium magnets | Grade: N50SH, Zn coating |
| R2796 | 2.2 | 0.9 | 0.7 | Radial | 100~500mT | Neodymium magnets | Grade: N45 |
| R2613 | 2.3 | 0.9 | 4.05 | Radial | 100~500mT | Neodymium magnets | Grade: N45SHMaximum operating temperature: 120-150 degrees Celsius |
| R2250 | 2.5 | 1 | 2.5 | Radial | 100~500mT | Neodymium magnets | Zn coating |
| R2008 | 2.5 | 1 | 3.4 | Radial | 100~500mT | Neodymium magnets | N38 miniature magnet |
| R2136 | 2.5 | 1.2 | 3.5 | Radial | 100~500mT | Neodymium magnets | |
| R1982 | 2.5 | 1.2 | 4.2 | Radial | 100~500mT | Neodymium magnets | N45M with nickel plating and high temperature resistance. |
| R2203 | 2.5 | 1.2 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Zn coating |
| R2596 | 2.5 | 1.2 | 6.1 | Radial | 100~500mT | Neodymium magnets | Grade: N28AHMaximum operating temperature 220 degrees Celsius, side magnetization |
| R2765 | 2.5 | 1.6 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1808 | 2.55 | 1.31 | 3.56 | Radial | 100~500mT | Neodymium magnets | - |
| R1994 | 2.6 | 1 | 3.6 | Radial | 100~500mT | Neodymium magnets | N40 grade magnet. |
| R2610 | 2.6 | 1.1 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N30HMaximum operating temperature 120 degrees Celsius |
| R1963 | 2.6 | 1.2 | 3.6 | Radial | 100~500mT | Neodymium magnets | Small aperture radial magnets, powerful radial magnetic columns, permanent magnets, ultra-small magnets |
| R2714 | 2.6 | 1.3 | 3.6 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2764 | 2.6 | 1.3 | 5.6 | Radial | 100~500mT | Neodymium magnets | Grade: N45M |
| R1985 | 2.6 | 1.55 | 3.7 | Radial | 100~500mT | Neodymium magnets | N42 grade magnet. |
| R2670 | 2.7 | 1.3 | 3.7 | Radial | 100~500mT | Neodymium magnets | Grade: N44HNiCuNi Coating. |
| R1962 | 2.7 | 1.55 | 3.7 | Radial | 100~500mT | Neodymium magnets | Radial small magnetic ring, powerful radial magnetic cylinder, cylindrical with hole, arc surface magnetization, permanent magnet |
| R2614 | 2.7 | 1.55 | 7.4 | Radial | 100~500mT | Neodymium magnets | Grade: N48MMaximum operating temperature 100 degrees Celsius |
| R1803 | 2.75 | 1.55 | 7.45 | Radial | 100~500mT | Neodymium magnets | - |
| R1988 | 2.98 | 1 | 3.2 | Radial | 100~500mT | Neodymium magnets | N42 grade with nickel plating. |
| R1650 | 3 | 1 | 1.2 | Radial | 142~152mT | Neodymium magnets | - |
| R2204 | 3 | 1 | 1.7 | Radial | 100~500mT | Neodymium magnets | Grade: N35, NiCuNi coating |
| R1974 | 3 | 1 | 3.2 | Radial | 100~500mT | Neodymium magnets | Miniature magnet, ultra-small magnetic cylinder, powerful radial magnetic ring, curved magnetic poles, left and right magnetization |
| R1794 | 3 | 1 | 3.3 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2198 | 3 | 1.2 | 8 | Radial | 100~500mT | Neodymium magnets | Grade: N35EH, Ni coating |
| R2199 | 3 | 1.5 | 8 | Radial | 100~500mT | Neodymium magnets | Grade: N35EH, Ni coating |
| R1796 | 3.2 | 2 | 2 | Radial | 100~150mT | Neodymium magnets | - |
| R2149 | 3.3 | 1 | 0.85 | Radial | 100~500mT | Neodymium magnets | Grade: N52, Ni coating |
| R2774 | 3.3 | 1.5 | 1.7 | Radial | 100~500mT | Neodymium magnets | Grade: N38H |
| R2692 | 3.3 | 1.7 | 1.7 | Radial | 100~500mT | Neodymium magnets | Grade: N38H |
| R2051 | 3.3 | 2 | 2 | Radial | 100~500mT | Neodymium magnets | N35 grade magnet. |
| R1742 | 3.4 | 2 | 2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2724 | 3.5 | 1 | 1.2 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R2166 | 3.5 | 1 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N42, Zn coating |
| R2155 | 3.7 | 1.6 | 13 | Radial | 100~500mT | Neodymium magnets | Grade: N48SH, Ni coating |
| R2146 | 3.8 | 1 | 13 | Radial | 100~500mT | Neodymium magnets | Grade: N52SH, Epoxy coating |
| R2814 | 3.8 | 3.2 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N45H |
| R1997 | 3.9 | 1.4 | 1.1 | Radial | 100~500mT | Neodymium magnets | N40M |
| R2694 | 4 | 1.15 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N42H |
| R1967 | 4 | 1.7 | 7.5 | Radial | 100~500mT | Neodymium magnets | N42SH stepper motor magnet, servo motor, radial neodymium iron boron magnet, temperature resistant up to 150°C |
| R1983 | 4 | 1.7 | 8.5 | Radial | 100~500mT | Neodymium magnets | N45H magnetic barrel |
| R1651 | 4 | 2 | 1 | Radial | 95~105mT | Neodymium magnets | - |
| R2115 | 4 | 2 | 4.5 | Radial | 100~500mT | Neodymium magnets | |
| R1652 | 4 | 2 | 5 | Radial | 325~335mT | Neodymium magnets | - |
| R2044 | 4 | 2 | 5.5 | Radial | 100~500mT | Neodymium magnets | N38H magnetic barrel. |
| R1842 | 4 | 2 | 6 | Radial | 100~500mT | Neodymium magnets | - |
| R2706 | 4 | 2 | 6.5 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R2129 | 4 | 2 | 7.6 | Radial | 100~500mT | Neodymium magnets | |
| R2040 | 4 | 2 | 9 | Radial | 100~500mT | Neodymium magnets | N38M grade magnet. |
| R2705 | 4 | 2.1 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R2648 | 4.1 | 3.25 | 1.8 | Radial | 100~500mT | Neodymium magnets | Grade: N44HNiCuNi Coating. |
| R2762 | 4.2 | 2 | 7.7 | Radial | 100~500mT | Neodymium magnets | Grade: N48M/N42M |
| R2188 | 4.5 | 1 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35SH, Ni coating |
| R1990 | 4.5 | 1.5 | 9.5 | Radial | 100~500mT | Neodymium magnets | N42H |
| R1964 | 4.5 | 2 | 9.6 | Radial | 100~500mT | Neodymium magnets | High-temperature radial magnetic ring (40H), temperature resistant up to 120°C, motor magnetic ring, vibration motor magnet |
| R2609 | 4.5 | 2 | 12.5 | Radial | 100~500mT | Neodymium magnets | Grade: N38HMaximum operating temperature 120 degrees Celsius |
| R2473 | 4.5 | 2.1 | 12.5 | Radial | 100~500mT | Neodymium magnets | - |
| R2133 | 4.5 | 2.5 | 8.5 | Radial | 100~500mT | Neodymium magnets | |
| R2251 | 4.6 | 1.2 | 1 | Radial | 100~500mT | Neodymium magnets | HP coating |
| R2157 | 4.6 | 1.6 | 7.8 | Radial | 100~500mT | Neodymium magnets | Grade: N48MT, Ni coating |
| R2158 | 4.6 | 1.6 | 9.7 | Radial | 100~500mT | Neodymium magnets | Grade: N48MT, Ni coating |
| R1984 | 4.6 | 2 | 9.6 | Radial | 100~500mT | Neodymium magnets | N45H |
| R2723 | 4.6 | 2 | 12.6 | Radial | 100~500mT | Neodymium magnets | Grade: N42H |
| R2472 | 4.6 | 2 | 12.7 | Radial | 100~500mT | Neodymium magnets | - |
| R2159 | 4.6 | 2 | 24 | Radial | 100~500mT | Neodymium magnets | Grade: N48H, Ni coating/ Phosphating |
| R1404 | 4.8 | 1.5 | 3 | Radial | 180-190mT | Bonded neodymium magnets | Motor magnet |
| R2189 | 4.8 | 2 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N35SH, Zn /Ni coating |
| R2749 | 4.8 | 2 | 6 | Radial | 100~500mT | Neodymium magnets | Grade: N38H |
| R2718 | 4.8 | 4.2 | 3.8 | Radial | 100~500mT | Neodymium magnets | Grade: N45H |
| R1743 | 5 | 1.5 | 4 | Radial | 100~150mT | Neodymium magnets | Zinc plating,Axial magnetization available. |
| R1744 | 5 | 1.5 | 7.5 | Radial | 100~150mT | Neodymium magnets | Zinc plating,Axial magnetization available. |
| R2602 | 5 | 2 | 0.7 | Radial | 100~500mT | Neodymium magnets | Grade: N40HMaximum operating temperature 120 degrees Celsius, irregular shape. |
| R1653 | 5 | 2 | 1.25 | Radial | 122~132mT | Neodymium magnets | - |
| R2409 | 5 | 2 | 2 | Radial | 100~500mT | Neodymium magnets | N52 |
| R1654 | 5 | 2 | 3 | Radial | 235~245mT | Neodymium magnets | - |
| R1655 | 5 | 2 | 4 | Radial | 285~295mT | Neodymium magnets | - |
| R1745 | 5 | 2 | 12 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1746 | 5 | 2.5 | 6.1 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1717 | 5 | 2.6 | 3 | Radial | 100~150mT | Neodymium magnets | - |
| R1991 | 5 | 2.6 | 6.6 | Radial | 100~500mT | Neodymium magnets | N42H grade magnet. |
| R2181 | 5 | 3 | 1.25 | Radial | 100~500mT | Neodymium magnets | Grade: N38, Ni coating |
| R2607 | 5 | 3 | 32.5 | Radial | 100~500mT | Neodymium magnets | Grade: N40HMaximum operating temperature 120 degrees Celsius |
| R2041 | 5.1 | 2 | 5.1 | Radial | 100~500mT | Neodymium magnets | N38M magnetic pole with high temperature resistance. |
| R2152 | 5.1 | 2 | 10.7 | Radial | 100~500mT | Neodymium magnets | Grade: N50SH, Zn coating |
| R1969 | 5.1 | 2.65 | 3.8 | Radial | 100~500mT | Neodymium magnets | N42 ring magnet, small circular magnet, magnetic barrel, radial magnetization, neodymium iron boron |
| R1747 | 5.2 | 2.5 | 5.2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1656 | 5.3 | 2.3 | 3.9 | Radial | 258~268mT | Neodymium magnets | - |
| R2603 | 5.3 | 2.4 | 12.5 | Radial | 100~500mT | Neodymium magnets | Grade: N45HMaximum operating temperature 120 degrees Celsius, side magnetization. |
| R2712 | 5.4 | 2 | 8.8 | Radial | 100~500mT | Neodymium magnets | Grade: N45H |
| R1805 | 5.4 | 2 | 9.4 | Radial | 100~500mT | Neodymium magnets | - |
| R2470 | 5.4 | 2.3 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R1748 | 5.4 | 2.5 | 4 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1795 | 5.4 | 2.5 | 6.6 | Radial | 100~150mT | Neodymium magnets | - |
| R2118 | 5.4 | 2.5 | 7 | Radial | 100~500mT | Neodymium magnets | |
| R1965 | 5.4 | 2.6 | 6.6 | Radial | 100~500mT | Neodymium magnets | Radial magnetic ring, sintered neodymium iron boron, strong magnet, not radially magnetized, magnet |
| R2206 | 5.5 | 2 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Epoxy coating |
| R2252 | 5.5 | 2.4 | 3 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R1657 | 5.5 | 2.5 | 1 | Radial | 85~95mT | Neodymium magnets | - |
| R1658 | 5.5 | 2.5 | 1.2 | Radial | 102~112mT | Neodymium magnets | - |
| R1659 | 5.5 | 2.5 | 1.5 | Radial | 125~135mT | Neodymium magnets | - |
| R1660 | 5.5 | 2.5 | 3 | Radial | 212~222mT | Neodymium magnets | - |
| R1806 | 5.5 | 2.5 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R1661 | 5.5 | 2.65 | 1 | Radial | 82~92mT | Neodymium magnets | - |
| R1662 | 5.5 | 2.65 | 2 | Radial | 152~162mT | Neodymium magnets | - |
| R2154 | 5.5 | 2.7 | 1.3 | Radial | 100~500mT | Neodymium magnets | Grade: N50, Ni coating |
| R1663 | 5.5 | 3 | 4 | Radial | 235~245mT | Neodymium magnets | - |
| R2032 | 5.8 | 3.5 | 3 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R2743 | 5.8 | 3.8 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2680 | 5.85 | 2.4 | 12.5 | Radial | 100~500mT | Neodymium magnets | Grade: N38HNiCuNi Coating. |
| R1664 | 5.9 | 2.8 | 5 | Radial | 278~288mT | Neodymium magnets | - |
| R1665 | 6 | 1.5 | 1.5 | Radial | 155~165mT | Neodymium magnets | - |
| R1666 | 6 | 1.5 | 2 | Radial | 192~202mT | Neodymium magnets | - |
| R1667 | 6 | 1.5 | 2.5 | Radial | 228~238mT | Neodymium magnets | - |
| R2693 | 6 | 1.8 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1749 | 6 | 2 | 2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1668 | 6 | 2 | 2.5 | Radial | 205~215mT | Neodymium magnets | - |
| R2535 | 6 | 2 | 3 | Radial | 100~500mT | Neodymium magnets | |
| R2116 | 6 | 2 | 12.5 | Radial | 100~500mT | Neodymium magnets | |
| R2208 | 6 | 2 | 15 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Epoxy coating |
| R1669 | 6 | 2.5 | 2 | Radial | 145~155mT | Neodymium magnets | - |
| R2716 | 6 | 2.5 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R2209 | 6 | 2.5 | 20 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2702 | 6 | 2.6 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R1719 | 6 | 2.7 | 5 | Radial | 100~150mT | Neodymium magnets | - |
| R1670 | 6 | 2.8 | 5 | Radial | 248~258mT | Neodymium magnets | - |
| R1671 | 6 | 3 | 2 | Radial | 122~132mT | Neodymium magnets | - |
| R1752 | 6 | 3 | 2.5 | Radial | 100~150mT | Neodymium magnets | Nickel plating,Axial magnetization available. |
| R2001 | 6 | 3 | 3 | Radial | 100~500mT | Neodymium magnets | N38 miniature magnet. |
| R2119 | 6 | 3 | 3.5 | Radial | 100~500mT | Neodymium magnets | |
| R2028 | 6 | 3 | 4 | Radial | 100~500mT | Neodymium magnets | N38 with nickel plating. |
| R2173 | 6 | 3 | 6 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH, Ni coating |
| R2392 | 6 | 3 | 7 | Radial | 100~500mT | Neodymium magnets | - |
| R1672 | 6 | 3 | 10 | Radial | 385~395mT | Neodymium magnets | - |
| R2190 | 6 | 3 | 13.3 | Radial | 100~500mT | Neodymium magnets | Grade: N35SH, Zn coating |
| R2210 | 6 | 3.2 | 3.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2211 | 6 | 3.2 | 7 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2655 | 6 | 3.3 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N40HNiCuNi Coating. |
| R1673 | 6 | 3.5 | 4 | Radial | 212~222mT | Neodymium magnets | - |
| R1674 | 6 | 3.5 | 5 | Radial | 245~255mT | Neodymium magnets | - |
| R1756 | 6 | 3.5 | 6 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1755 | 6 | 3.8 | 5 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1757 | 6 | 3.8 | 6 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2253 | 6.2 | 3 | 11 | Radial | 100~500mT | Neodymium magnets | HP coating |
| R2389 | 6.3 | 2.8 | 11 | Radial | 100~500mT | Neodymium magnets | - |
| R2196 | 6.3 | 3 | 10 | Radial | 100~500mT | Neodymium magnets | Grade: N35H, Ni coating |
| R2175 | 6.3 | 3 | 11 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH, Zn coating |
| R2174 | 6.3 | 3 | 13 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH, Zn coating |
| R2758 | 6.4 | 3 | 5.5 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R2020 | 6.4 | 3 | 30 | Radial | 100~500mT | Neodymium magnets | N38 magnetic barrel |
| R2182 | 6.4 | 3.5 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N38, Ni coating |
| R1720 | 6.5 | 2.1 | 1 | Radial | 100~150mT | Neodymium magnets | - |
| R1721 | 6.5 | 3.5 | 3 | Radial | 100~150mT | Neodymium magnets | - |
| R1722 | 6.5 | 3.5 | 4 | Radial | 100~150mT | Neodymium magnets | - |
| R1723 | 6.5 | 4 | 3 | Radial | 100~150mT | Neodymium magnets | - |
| R2254 | 6.5 | 4.5 | 3 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R2191 | 6.6 | 4 | 29 | Radial | 100~500mT | Neodymium magnets | Grade: N35SH, Ni coating |
| R2176 | 6.9 | 3 | 24 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH, Ni coating |
| R0010 | 7 | 1 | 3.5 | Radial | 150-155mT | Injection molded neodymium magnets | Magnetic encoder ring |
| R2745 | 7 | 2.2 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1675 | 7 | 3 | 1 | Radial | 72~82mT | Neodymium magnets | - |
| R2533 | 7 | 3 | 1.5 | Radial | 100~500mT | Neodymium magnets | Zn-plated N35 magnetic ring |
| R1676 | 7 | 3 | 3 | Radial | 185~195mT | Neodymium magnets | - |
| R2120 | 7 | 3 | 3.5 | Radial | 100~500mT | Neodymium magnets | |
| R2121 | 7 | 3 | 4 | Radial | 100~500mT | Neodymium magnets | |
| R2141 | 7 | 3 | 12 | Radial | 100~500mT | Neodymium magnets | N45SH |
| R0013 | 7 | 3 | 14 | Radial | 150-160mT | Bonded neodymium magnets | Magnetic encoder ring |
| R1725 | 7 | 4 | 4 | Radial | 100~150mT | Neodymium magnets | Radial (N35) |
| R1727 | 7 | 5 | 1 | Radial | 100~150mT | Neodymium magnets | - |
| R1728 | 7 | 5 | 1.5 | Radial | 100~150mT | Neodymium magnets | - |
| R2161 | 7 | 5 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N48, Ni coating |
| R1843 | 7.1 | 3 | 12 | Radial | 100~500mT | Neodymium magnets | - |
| R1809 | 7.1 | 3 | 12.1 | Radial | 100~500mT | Neodymium magnets | - |
| R2708 | 7.15 | 2 | 12.5 | Radial | 100~500mT | Neodymium magnets | Grade: N42M |
| R2255 | 7.2 | 3 | 6.3 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R2194 | 7.2 | 3 | 7 | Radial | 100~500mT | Neodymium magnets | Grade: N35H/N38SH, Zn coating |
| R2187 | 7.2 | 3 | 9 | Radial | 100~500mT | Neodymium magnets | Grade: N35SH/N35/N38SH, Zn coating |
| R2177 | 7.2 | 3 | 10 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH, Zn coating |
| R1677 | 7.2 | 3 | 11 | Radial | 435~445mT | Neodymium magnets | - |
| R2162 | 7.2 | 3.5 | 17.9 | Radial | 100~500mT | Neodymium magnets | Grade: N45H, Ni coating |
| R2386 | 7.2 | 3.5 | 19.7 | Radial | 100~500mT | Neodymium magnets | - |
| R2213 | 7.2 | 3.5 | 19.75 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R1678 | 7.2 | 4 | 9 | Radial | 335~345mT | Neodymium magnets | - |
| R2257 | 7.2 | 4 | 10 | Radial | 100~500mT | Neodymium magnets | Zn coating |
| R1679 | 7.2 | 4.2 | 3.5 | Radial | 172~182mT | Neodymium magnets | - |
| R2183 | 7.25 | 4 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38, Ni coating |
| R2247 | 7.25 | 4 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N30, Ni coating |
| R2184 | 7.25 | 4.02 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38, Ni coating |
| R2217 | 7.4 | 1.5 | 7.3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2215 | 7.4 | 1.5 | 10.3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2148 | 7.4 | 1.5 | 10.4 | Radial | 100~500mT | Neodymium magnets | Grade: N52SH, Ni coating |
| R2216 | 7.4 | 1.5 | 14.3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2122 | 7.5 | 4 | 4.1 | Radial | 100~500mT | Neodymium magnets | |
| R2150 | 7.5 | 4 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N52, Ni coating |
| R2218 | 7.5 | 5 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Zn coating |
| R2616 | 7.6 | 2.7 | 25 | Radial | 100~500mT | Neodymium magnets | Grade: N45SHHigh temperature resistance |
| R2185 | 7.6 | 4 | 2.2 | Radial | 100~500mT | Neodymium magnets | Grade: N38, Ni coating |
| R1680 | 7.8 | 1.5 | 2.8 | Radial | 245~255mT | Neodymium magnets | - |
| R2219 | 7.8 | 1.5 | 2.9 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2170 | 7.8 | 1.5 | 3.9 | Radial | 100~500mT | Neodymium magnets | Grade: N40, Ni coating |
| R2212 | 7.8 | 1.5 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R1681 | 7.8 | 1.5 | 6 | Radial | 395~405mT | Neodymium magnets | - |
| R1682 | 7.8 | 1.5 | 7 | Radial | 422~432mT | Neodymium magnets | - |
| R1961 | 7.8 | 3 | 22 | Radial | 100~500mT | Neodymium magnets | Radial magnetic cylinder, extra-long magnetic cylinder, ultra-fine magnetic tube, powerful magnet, neodymium iron boron, cylindrical |
| R1976 | 7.8 | 3 | 33 | Radial | 100~500mT | Neodymium magnets | Slender cylindrical tube, high-strength magnetic steel, radial magnetic cylinder, perforated magnetic rod, mechanical filter magnetic cylinder, heavy-duty |
| R2790 | 7.8 | 4 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2171 | 7.85 | 1.5 | 3.9 | Radial | 100~500mT | Neodymium magnets | Grade: N40, Ni coating |
| R2054 | 7.9 | 1.5 | 3.8 | Radial | 100~500mT | Neodymium magnets | N33 grade magnet. |
| R0021 | 7.9 | 3 | 4.65 | Radial | 100mT | Injection molded ferrite magnets | - |
| R1242 | 7.9 | 4 | 4 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R0022 | 7.9 | 5 | 4.2 | Radial | 85-100mT | Bonded neodymium magnets | Magnetic encoder ring |
| R2192 | 8 | 1.5 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N35SH, Zn coating |
| R2258 | 8 | 1.5 | 3.8 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R1972 | 8 | 1.5 | 4 | Radial | 100~500mT | Neodymium magnets | Radial magnet, radial magnetic ring, radial magnetic column, small circular ring magnet, cylindrical magnet |
| R2650 | 8 | 2.5 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N38NiCuNi Coating. |
| R2123 | 8 | 2.5 | 5 | Radial | 100~500mT | Neodymium magnets | |
| R1232 | 8 | 2.8 | 2 | Radial | 100-120mT | Sintered neodymium magnets | Strong magnets |
| R1683 | 8 | 3 | 1 | Radial | 72~82mT | Neodymium magnets | - |
| R1684 | 8 | 3 | 2 | Radial | 132~142mT | Neodymium magnets | - |
| R1759 | 8 | 3 | 2.5 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1685 | 8 | 3 | 3 | Radial | 182~192mT | Neodymium magnets | - |
| R0023 | 8 | 3 | 4 | Radial | 160-165mT | Bonded neodymium magnets | Magnetic encoder ring |
| R2019 | 8 | 3 | 5 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R2179 | 8 | 3 | 6 | Radial | 100~500mT | Neodymium magnets | Grade: N38H, Ni coating |
| R2259 | 8 | 3 | 10 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R2003 | 8 | 3 | 20 | Radial | 100~500mT | Neodymium magnets | N38 |
| R2788 | 8 | 3.05 | 20 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2227 | 8 | 3.2 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R1729 | 8 | 3.5 | 2 | Radial | 100~150mT | Neodymium magnets | - |
| R2260 | 8 | 3.5 | 2.5 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R2228 | 8 | 3.5 | 13.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2197 | 8 | 3.9 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N35H, Ni coating |
| R2474 | 8 | 4 | 2 | Radial | 100~500mT | Neodymium magnets | - |
| R2229 | 8 | 4 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Zn coating |
| R1213 | 8 | 4 | 4 | Radial | 100-120mT | Sintered neodymium magnets | Strong magnetic ring |
| R1863 | 8 | 4 | 10 | Radial | 100~500mT | Neodymium magnets | Precision Strong Radial Magnet |
| R2231 | 8 | 4 | 13.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2178 | 8 | 4.4 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH, Ni coating |
| R1687 | 8 | 4.5 | 1.5 | Radial | 65~75mT | Neodymium magnets | - |
| R2112 | 8 | 4.5 | 20 | Radial | 100~500mT | Neodymium magnets | |
| R2127 | 8 | 4.7 | 20 | Radial | 100~500mT | Neodymium magnets | |
| R1688 | 8 | 5 | 1 | Radial | 45~55mT | Neodymium magnets | - |
| R1689 | 8 | 5 | 2 | Radial | 85~95mT | Neodymium magnets | - |
| R1864 | 8 | 5 | 10 | Radial | 100~150mT | Neodymium magnets | - |
| R1690 | 8 | 5.5 | 3 | Radial | 105~115mT | Neodymium magnets | - |
| R1763 | 8 | 6 | 0.8 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2234 | 8 | 6 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2269 | 8 | 6 | 4 | Radial | 100~500mT | Bonded neodymium magnets | - |
| R2665 | 8.05 | 4.3 | 12 | Radial | 100~500mT | Neodymium magnets | Grade: N38NiCuNi Coating. |
| R1810 | 8.3 | 3 | 8 | Radial | 100~500mT | Neodymium magnets | - |
| R1811 | 8.3 | 4 | 12.5 | Radial | 100~500mT | Neodymium magnets | - |
| R0029 | 8.35 | 2 | 4 | Radial | 100mT | Injection molded ferrite magnets | - |
| R2689 | 8.35 | 4.8 | 0.2 | Radial | 100~500mT | Neodymium magnets | Grade: N48M |
| R1989 | 8.4 | 4 | 10 | Radial | 100~500mT | Neodymium magnets | N42M magnetic barrel. |
| R2695 | 8.5 | 3.2 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1812 | 8.5 | 4.5 | 11 | Radial | 100~500mT | Neodymium magnets | - |
| R2153 | 8.5 | 5.4 | 18 | Radial | 100~500mT | Neodymium magnets | Grade: N50SH, Ni coating |
| R1196 | 8.5 | 6 | 3 | Radial | 100-120mT | Sintered neodymium magnets | N35 |
| R1420 | 8.8 | 4 | 9.7 | Radial | 300-320mT | Neodymium magnets | Grade: N35SH |
| R2236 | 9 | 1.5 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2646 | 9 | 3 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N40NiCuNi Coating. |
| R1731 | 9 | 3.5 | 3 | Radial | 100~150mT | Neodymium magnets | - |
| R0098 | 9 | 4 | 3 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2761 | 9 | 4 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N40M |
| R1968 | 9 | 4 | 25 | Radial | 100~500mT | Neodymium magnets | 48H high-temperature radial magnetic ring (not radially magnetized), long cylindrical magnet, filter ring magnet |
| R1613 | 9 | 4.5 | 3 | Radial | 132~142mT | Neodymium magnets | - |
| R1614 | 9 | 5 | 3 | Radial | 118~128mT | Neodymium magnets | - |
| R2160 | 9 | 5 | 21 | Radial | 100~500mT | Neodymium magnets | Grade: N48H, HP coating |
| R1615 | 9 | 5.5 | 1.5 | Radial | 58~68mT | Neodymium magnets | - |
| R2725 | 9 | 6 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2248 | 9 | 7 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N30, ZV coating |
| R2042 | 9.1 | 5.5 | 13.8 | Radial | 100~500mT | Neodymium magnets | N38H |
| R2811 | 9.3 | 2 | 3.18 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1980 | 9.3 | 2.7 | 10.1 | Radial | 100~500mT | Neodymium magnets | High-performance N45SH magnetic barrel with passivation treatment. |
| R1862 | 9.4 | 3.18 | 19 | Radial | 100~500mT | Neodymium magnets | Permanent Radial Magnet |
| R2084 | 9.4 | 3.2 | 19 | Radial | 100~500mT | Neodymium magnets | - |
| R2237 | 9.4 | 3.3 | 3.2 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R1813 | 9.5 | 3.18 | 3.2 | Radial | 100~500mT | Neodymium magnets | - |
| R2195 | 9.5 | 4.5 | 1 | Radial | 100~500mT | Neodymium magnets | Grade: N35H/N38H, Zn coating |
| R2239 | 9.5 | 4.5 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2240 | 9.5 | 4.5 | 2.7 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2241 | 9.5 | 5 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R1280 | 9.5 | 5.8 | 3.5 | Radial | 100-120mT | Sintered neodymium magnets | N35 |
| R2242 | 9.5 | 6 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R2746 | 9.53 | 3.18 | 3.18 | Radial | 100~500mT | Neodymium magnets | Grade: N42 |
| R2691 | 9.8 | 5 | 19.5 | Radial | 100~500mT | Neodymium magnets | Grade: N45M |
| R2164 | 9.9 | 6.5 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N45, Zn coating |
| R1616 | 10 | 3 | 3 | Radial | 158~168mT | Neodymium magnets | - |
| R1617 | 10 | 3 | 7 | Radial | 298~308mT | Neodymium magnets | - |
| R2104 | 10 | 3 | 15 | Radial | 100~500mT | Neodymium magnets | - |
| R2105 | 10 | 3 | 28.5 | Radial | 100~500mT | Neodymium magnets | - |
| R0066 | 10 | 3.2 | 6 | Radial | 100mT | Injection molded ferrite magnets | - |
| R1918 | 10 | 4 | 2 | Radial | 100~850mT | Neodymium magnets | |
| R1618 | 10 | 4 | 4 | Radial | 175~185mT | Neodymium magnets | - |
| R2615 | 10 | 4 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N38UHHigh temperature resistance |
| R2767 | 10 | 4 | 6 | Radial | 100~500mT | Neodymium magnets | Grade: N38UH |
| R2778 | 10 | 4 | 29 | Radial | 100~500mT | Neodymium magnets | Grade: N38UH |
| R2201 | 10 | 5 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35/N30, Zn coating |
| R1924 | 10 | 5 | 5 | Radial | 100~1200mT | Neodymium magnets | |
| R2261 | 10 | 5 | 10 | Radial | 100~500mT | Neodymium magnets | Zn coating |
| R2262 | 10 | 5 | 20 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R1619 | 10 | 5.1 | 10 | Radial | 305~315mT | Neodymium magnets | - |
| R1230 | 10 | 5.5 | 2.5 | Radial | 100-120mT | Sintered neodymium magnets | Strong magnets |
| R2794 | 10 | 5.5 | 3.8 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1765 | 10 | 5.5 | 4 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1621 | 10 | 6 | 2 | Radial | 72~82mT | Neodymium magnets | - |
| R1622 | 10 | 6 | 3 | Radial | 105~115mT | Neodymium magnets | - |
| R2760 | 10 | 6 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2263 | 10 | 6 | 13 | Radial | 100~500mT | Neodymium magnets | Ni coating |
| R1766 | 10 | 6.3 | 2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1623 | 10 | 6.5 | 2.5 | Radial | 78~88mT | Neodymium magnets | - |
| R2156 | 10 | 6.5 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N48SH, Ni coating |
| R2264 | 10 | 6.8 | 2.5 | Radial | 100~500mT | Neodymium magnets | Zn coating |
| R2186 | 10 | 7 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38, Ni coating |
| R1624 | 10 | 7 | 3 | Radial | 84~94mT | Neodymium magnets | - |
| R1735 | 10 | 7.2 | 3 | Radial | 100~150mT | Neodymium magnets | - |
| R2244 | 10.4 | 6.4 | 1.5 | Radial | 100~500mT | Neodymium magnets | Grade: N35, Ni coating |
| R1916 | 10.5 | 3 | 15 | Radial | 100~150mT | Neodymium magnets | |
| R2772 | 10.5 | 4 | 8.65 | Radial | 100~500mT | Neodymium magnets | Grade: N35UH |
| R1814 | 10.5 | 5 | 10.6 | Radial | 100~500mT | Neodymium magnets | - |
| R2000 | 10.5 | 7 | 1.5 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R1920 | 10.6 | 4 | 7 | Radial | 100~4700mT | Neodymium magnets | Grade 40EH (Max 200°C) |
| R2143 | 10.6 | 5 | 10.5 | Radial | 100~500mT | Neodymium magnets | N45SH |
| R2045 | 11 | 1.53 | 5 | Radial | 100~500mT | Neodymium magnets | N35 with nickel plating |
| R0083 | 11 | 2.6 | 8 | Radial | 120mT | Injection molded neodymium magnets | - |
| R0081 | 11 | 3.2 | 8 | Radial | 120mT | Injection molded neodymium magnets | - |
| R1625 | 11 | 5 | 2 | Radial | 76~86mT | Neodymium magnets | - |
| R0961 | 11 | 5 | 5 | Radial | 85-100mT | Bonded neodymium magnets | Hall Effect Magnetic Ring |
| R2612 | 11 | 6 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N42HMaximum operating temperature 120 degrees Celsius |
| R1626 | 11 | 7 | 2 | Radial | 55~65mT | Neodymium magnets | - |
| R1627 | 11 | 7.15 | 2 | Radial | 53~63mT | Neodymium magnets | - |
| R1628 | 11 | 7.2 | 2.5 | Radial | 65~75mT | Neodymium magnets | - |
| R2018 | 11 | 7.2 | 3 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R1233 | 11 | 7.5 | 2 | Radial | 100-120mT | Sintered neodymium magnets | N40 |
| R2642 | 11 | 7.5 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N40MNiCuNi Coating. |
| R1770 | 11 | 8 | 10 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2365 | 11.2 | 7.2 | 2.5 | Radial | 100~500mT | Neodymium magnets | - |
| R1923 | 11.4 | 5 | 6.5 | Radial | 100~500mT | Neodymium magnets | |
| R2364 | 11.5 | 5 | 10 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R1629 | 11.5 | 6.5 | 2 | Radial | 58~68mT | Neodymium magnets | - |
| R2103 | 11.7 | 5 | 24 | Radial | 100~500mT | Neodymium magnets | - |
| R2124 | 12 | 2 | 6 | Radial | 100~500mT | Neodymium magnets | |
| R2358 | 12 | 2.3 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R1630 | 12 | 2.4 | 4 | Radial | 212~222mT | Neodymium magnets | - |
| R1631 | 12 | 3 | 1.5 | Radial | 78~88mT | Neodymium magnets | - |
| R2532 | 12 | 3 | 3 | Radial | 100~500mT | Neodymium magnets | N35 Ni-plated magnetic ring with 3mm countersunk hole / N38 Black Epoxy / N42SH Ni-plated |
| R1632 | 12 | 3 | 4 | Radial | 203~213mT | Neodymium magnets | - |
| R1633 | 12 | 3 | 6 | Radial | 275~285mT | Neodymium magnets | - |
| R1634 | 12 | 3.1 | 3 | Radial | 150~160mT | Neodymium magnets | - |
| R1635 | 12 | 4 | 4 | Radial | 188~198mT | Neodymium magnets | - |
| R2641 | 12 | 4 | 16 | Radial | 100~500mT | Neodymium magnets | Grade: N48NiCuNi Coating. |
| R0091 | 12 | 5 | 2.1 | Radial | 90mT | Injection molded ferrite magnets | - |
| R2117 | 12 | 5 | 10 | Radial | 100~500mT | Neodymium magnets | |
| R2113 | 12 | 5 | 11 | Radial | 100~500mT | Neodymium magnets | |
| R1973 | 12 | 5 | 12 | Radial | 100~500mT | Neodymium magnets | Radial magnetic column, perforated magnetic column, radial magnetic cylinder, super strong magnet, cylindrical magnet, filter element |
| R2025 | 12 | 5 | 25 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R1636 | 12 | 6 | 2 | Radial | 78~88mT | Neodymium magnets | - |
| R2773 | 12 | 6 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N40 |
| R1996 | 12 | 6 | 4 | Radial | 100~500mT | Neodymium magnets | N40M grade magnet. |
| R2543 | 12 | 6 | 4.5 | Radial | 100~500mT | Neodymium magnets | 12x4.5mm with 6mm hole, Ni-plated N35 magnetic ring |
| R2781 | 12 | 6 | 7 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R1220 | 12 | 6.6 | 1.5 | Radial | 100-120mT | Sintered neodymium magnets | N45H |
| R1637 | 12 | 7 | 2 | Radial | 63~73mT | Neodymium magnets | - |
| R1195 | 12 | 7 | 3 | Radial | 100-120mT | Sintered neodymium magnets | N48H high temperature resistance |
| R1639 | 12 | 8 | 2 | Radial | 50~60mT | Neodymium magnets | - |
| R1640 | 12 | 8 | 3 | Radial | 75~85mT | Neodymium magnets | - |
| R0099 | 12 | 8 | 5 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2352 | 12.1 | 5 | 12.5 | Radial | 100~500mT | Neodymium magnets | - |
| R1928 | 12.2 | 6 | 24 | Radial | 100~2950mT | Neodymium magnets | High Temp, Grade 38UH |
| R2644 | 12.5 | 4 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N50NiCuNi Coating. |
| R2699 | 12.5 | 4 | 34 | Radial | 100~500mT | Neodymium magnets | Grade: N42H |
| R2106 | 12.5 | 7.25 | 24.2 | Radial | 100~500mT | Neodymium magnets | - |
| R2085 | 12.5 | 7.3 | 25.3 | Radial | 100~500mT | Neodymium magnets | - |
| R2629 | 12.7 | 6.35 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N35NiCuNi Coating. |
| R1868 | 12.8 | 9 | 15 | Radial | 100~500mT | Neodymium magnets | High-temp Radial Magnet |
| R1641 | 13 | 4 | 2 | Radial | 82~92mT | Neodymium magnets | - |
| R1925 | 13 | 5.3 | 12 | Radial | 100~500mT | Neodymium magnets | |
| R1927 | 13 | 6 | 14 | Radial | 100~500mT | Neodymium magnets | |
| R2349 | 13 | 7 | 2 | Radial | 100~500mT | Neodymium magnets | - |
| R0119 | 13 | 8 | 3.5 | Radial | 100mT | Injection molded ferrite magnets | - |
| R0125 | 13 | 8 | 4 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2351 | 13 | 8 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R1933 | 13 | 8 | 28 | Radial | 100~4000mT | Neodymium magnets | High Temp |
| R1642 | 13 | 8.1 | 2.5 | Radial | 60~70mT | Neodymium magnets | - |
| R1237 | 13 | 8.2 | 2 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R1207 | 13 | 8.2 | 2.5 | Radial | 100-120mT | Sintered neodymium magnets | Strong magnetic ring |
| R1644 | 13 | 9 | 2 | Radial | 38~48mT | Neodymium magnets | - |
| R2013 | 13 | 10 | 1.5 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R2006 | 13.2 | 7.5 | 5 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R2683 | 13.2 | 7.5 | 10 | Radial | 100~500mT | Neodymium magnets | Grade: N50NiCuNi Coating. |
| R2014 | 13.2 | 7.5 | 24 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R1867 | 13.4 | 7 | 15 | Radial | 100~500mT | Neodymium magnets | Custom Industrial Radial Magnet |
| R2780 | 13.5 | 8.5 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R1934 | 13.8 | 9 | 15 | Radial | 100~150mT | Neodymium magnets | |
| R0139 | 14 | 2 | 4 | Radial | 90-100mT | Injection molded neodymium magnets | Magnetic encoder ring |
| R0153 | 14 | 2 | 5.5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R0164 | 14 | 2.3 | 5.5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R1095 | 14 | 2.95 | 4 | Radial | 60-70mT | Bonded neodymium magnets | Motor Encoder Magnetic Ring |
| R1075 | 14 | 3.15 | 4 | Radial | 60-70mT | Bonded neodymium magnets | 370 DC Motor Magnetic Encoder Ring |
| R0017 | 14 | 3.15 | 5.5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R0175 | 14 | 3.2 | 5.5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R2038 | 14 | 4 | 26 | Radial | 100~500mT | Neodymium magnets | N38UH magnetic barrel with high temperature resistance. |
| R1128 | 14 | 5 | 4 | Radial | 60-70mT | Bonded neodymium magnets | Self-balancing Scooter Control Magnet Ring |
| R0186 | 14 | 5 | 5.5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R0214 | 14 | 5 | 7 | Radial | 130mT | Injection molded ferrite magnets | - |
| R1922 | 14 | 5 | 25 | Radial | 100~500mT | Neodymium magnets | |
| R0126 | 14 | 6 | 3 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2608 | 14 | 6 | 20 | Radial | 100~500mT | Neodymium magnets | Grade: N40HMaximum operating temperature 120 degrees Celsius |
| R2624 | 14 | 6 | 25 | Radial | 100~500mT | Neodymium magnets | Grade: N48NiCuNi Coating. |
| R0197 | 14 | 7 | 5.5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R1929 | 14 | 7 | 18 | Radial | 100~500mT | Neodymium magnets | |
| R2347 | 14 | 7 | 20 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R0226 | 14 | 8 | 4 | Radial | 75mT | Injection molded ferrite magnets | - |
| R1214 | 14 | 8 | 5 | Radial | 100-120mT | Sintered neodymium magnets | N35 |
| R0215 | 14 | 8.4 | 4 | Radial | 80mT | Injection molded ferrite magnets | - |
| R2652 | 14 | 10 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N48NiCuNi Coating. |
| R1775 | 14 | 10 | 2.5 | Radial | 100~150mT | Neodymium magnets | Zinc plating,Axial magnetization available. |
| R2072 | 14.5 | 6 | 16 | Radial | 100~500mT | Neodymium magnets | 40H |
| R1865 | 14.5 | 6 | 19 | Radial | 100~150mT | Neodymium magnets | NicuNi coating, tolerance ±0.1 mm. |
| R2597 | 14.5 | 7 | 40 | Radial | 100~500mT | Neodymium magnets | Grade: N30EHMaximum operating temperature 200 degrees Celsius |
| R2776 | 14.5 | 9.5 | 12 | Radial | 100~500mT | Neodymium magnets | Grade: N35 |
| R1866 | 14.8 | 7 | 16.2 | Radial | 100~150mT | Neodymium magnets | - |
| R0319 | 14.8 | 8 | 2.8 | Radial | 75mT | Injection molded ferrite magnets | - |
| R0317 | 14.8 | 8.4 | 2.8 | Radial | 75mT | Injection molded ferrite magnets | - |
| R2700 | 15 | 3 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N40 |
| R2541 | 15 | 3.4 | 4 | Radial | 100~500mT | Neodymium magnets | N38 Ni-plated magnetic ring with 3.4mm countersunk hole |
| R0321 | 15 | 6 | 5 | Radial | 70-80mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R2729 | 15 | 6 | 25 | Radial | 100~500mT | Neodymium magnets | Grade: N40H |
| R1776 | 15 | 8 | 2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R0327 | 15 | 8 | 5 | Radial | 130-140mT | Ferrite magnets | Magnetic encoder ring |
| R2341 | 15 | 8.3 | 2.5 | Radial | 100~500mT | Neodymium magnets | - |
| R1777 | 15 | 9 | 2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1396 | 15 | 9 | 12.5 | Radial | 40-50mT | Injection molded ferrite magnets | Servo motor |
| R1738 | 15 | 11 | 2 | Radial | 100~150mT | Neodymium magnets | - |
| R1739 | 15 | 12.5 | 5 | Radial | 100~150mT | Neodymium magnets | - |
| R2815 | 15 | 15 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2738 | 15.5 | 5.5 | 4 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R0364 | 15.5 | 11 | 7 | Radial | 130mT | Injection molded neodymium magnets | - |
| R1740 | 15.5 | 12.5 | 1.5 | Radial | 100~150mT | Neodymium magnets | - |
| R1410 | 15.5 | 13.5 | 5 | Radial | 45-55mT | Injection molded ferrite magnets | 3C industry |
| R1926 | 15.8 | 6 | 20 | Radial | 100~500mT | Neodymium magnets | |
| R2017 | 15.8 | 8 | 3.7 | Radial | 100~500mT | Neodymium magnets | N38 grade magnet. |
| R0372 | 16 | 2 | 20 | Radial | 65-70mT | Ferrite magnets | Magnetic encoder ring |
| R2476 | 16 | 2 | 30 | Radial | 100~500mT | Neodymium magnets | - |
| R2538 | 16 | 4 | 4 | Radial | 100~500mT | Neodymium magnets | N38 magnetic ring with countersunk hole, Black Epoxy coated |
| R2539 | 16 | 4 | 4.2 | Radial | 100~500mT | Neodymium magnets | N38 Ni-plated magnetic ring with 4mm countersunk hole |
| R2637 | 16 | 5 | 6 | Radial | 100~500mT | Neodymium magnets | Grade: N38NiCuNi Coating. |
| R2475 | 16 | 5 | 12 | Radial | 100~500mT | Neodymium magnets | - |
| R2477 | 16 | 5 | 30 | Radial | 100~500mT | Neodymium magnets | - |
| R0368 | 16 | 6 | 5 | Radial | 42-48mT | Neodymium magnets | Magnetic encoder ring |
| R2808 | 16 | 6 | 7 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R2740 | 16 | 6 | 20 | Radial | 100~500mT | Neodymium magnets | Grade: N40H |
| R2731 | 16 | 6 | 25 | Radial | 100~500mT | Neodymium magnets | Grade: N40H |
| R1645 | 16 | 7 | 2 | Radial | 65~75mT | Neodymium magnets | - |
| R2544 | 16 | 7.2 | 3 | Radial | 100~500mT | Neodymium magnets | Ni-plated N35 magnetic ring, oval-shaped |
| R1258 | 16 | 8 | 10 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R0234 | 16 | 9 | 5 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2707 | 16 | 10 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N40 |
| R2336 | 16 | 10 | 6 | Radial | 100~500mT | Bonded neodymium magnets | - |
| R2337 | 16 | 12 | 2 | Radial | 100~500mT | Neodymium magnets | - |
| R0408 | 17 | 3.96 | 4 | Radial | 90-300mT | Bonded neodymium magnets | - |
| R0401 | 17 | 4 | 4 | Radial | 90-95mT | Copper metal ring/ injection molded neodymium magnets | Magnetic encoder ring |
| R2334 | 17 | 10.2 | 5 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R0235 | 17 | 11 | 8 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R1215 | 17 | 12 | 4 | Radial | 100-120mT | Sintered neodymium magnets | N40 |
| R2710 | 17 | 13 | 32 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2804 | 17.1 | 11.5 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R2537 | 17.8 | 8 | 3.5 | Radial | 100~500mT | Neodymium magnets | Ni-plated |
| R2479 | 18 | 5 | 36 | Radial | 100~500mT | Neodymium magnets | - |
| R2480 | 18 | 5 | 46 | Radial | 100~500mT | Neodymium magnets | - |
| R1646 | 18 | 6 | 4 | Radial | 135~145mT | Neodymium magnets | - |
| R0427 | 18 | 6 | 24 | Radial | 95-110mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R0238 | 18 | 8 | 4 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R1402 | 18 | 8 | 5 | Radial | 190-200mT | Bonded neodymium magnets | Multi-pole magnetic ring |
| R1932 | 18 | 8 | 14 | Radial | 100~150mT | Neodymium magnets | |
| R2481 | 18 | 8 | 36 | Radial | 100~500mT | Neodymium magnets | - |
| R2482 | 18 | 8 | 42 | Radial | 100~500mT | Neodymium magnets | - |
| R1206 | 18 | 10 | 5 | Radial | 60-70mT | Bonded neodymium magnets | Hall effect magnetic ring |
| R2799 | 18 | 10 | 10 | Radial | 100~500mT | Neodymium magnets | Grade: N50 |
| R2093 | 18 | 10 | 20 | Radial | 100~150mT | Neodymium magnets | - |
| R1940 | 18 | 10 | 25 | Radial | 100~150mT | Neodymium magnets | |
| R2330 | 18 | 12 | 2.5 | Radial | 100~500mT | Bonded neodymium magnets | - |
| R2333 | 18 | 12 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R1648 | 18 | 12 | 8 | Radial | 175~185mT | Neodymium magnets | - |
| R2332 | 18 | 12.1 | 4.9 | Radial | 100~500mT | Neodymium magnets | - |
| R1779 | 18 | 13 | 4 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1649 | 18 | 13.5 | 3 | Radial | 48~58mT | Neodymium magnets | - |
| R2329 | 18.2 | 14 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R2483 | 18.5 | 5 | 31 | Radial | 100~500mT | Neodymium magnets | - |
| R2111 | 18.5 | 5.2 | 17.5 | Radial | 100~500mT | Neodymium magnets | |
| R1944 | 18.5 | 10 | 20 | Radial | 100~10300mT | Neodymium magnets | |
| R2094 | 18.5 | 10 | 25 | Radial | 100~500mT | Neodymium magnets | - |
| R0466 | 19 | 5 | 33 | Radial | 65-70mT | Ferrite magnets | Magnetic encoder ring |
| R2039 | 19 | 6.1 | 17 | Radial | 100~500mT | Neodymium magnets | N38UH grade magnet. |
| R2787 | 19 | 6.1 | 27 | Radial | 100~500mT | Neodymium magnets | Grade: N38UH |
| R2777 | 19 | 10 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R2704 | 19 | 12 | 10 | Radial | 100~500mT | Neodymium magnets | Grade: N50 |
| R1692 | 19 | 13 | 2.5 | Radial | 62~72mT | Neodymium magnets | - |
| R2484 | 19 | 13 | 10 | Radial | 100~500mT | Neodymium magnets | - |
| R2793 | 19.15 | 15 | 9 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R1271 | 19.5 | 4 | 2.5 | Radial | 100-120mT | Sintered neodymium magnets | N35 |
| R2634 | 19.5 | 12 | 2.5 | Radial | 100~500mT | Neodymium magnets | Grade: N48NiCuNi Coating. |
| R1693 | 19.5 | 13 | 3 | Radial | 72~82mT | Neodymium magnets | - |
| R1694 | 19.5 | 14 | 2.5 | Radial | 55~65mT | Neodymium magnets | - |
| R2806 | 19.5 | 16.5 | 5 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R2775 | 19.8 | 16 | 15 | Radial | 100~500mT | Neodymium magnets | Grade: N48 |
| R1701 | 20 | 3 | 3 | Radial | 115~125mT | Neodymium magnets | - |
| R2125 | 20 | 5 | 13 | Radial | 100~500mT | Neodymium magnets | |
| R2325 | 20 | 5.2 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R2487 | 20 | 6 | 8 | Radial | 100~500mT | Neodymium magnets | - |
| R1780 | 20 | 9.5 | 30.5 | Radial | 100~150mT | Neodymium magnets | Withstands 120 degrees Celsius,Axial magnetization available. |
| R1781 | 20 | 10 | 4 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1695 | 20 | 10 | 5 | Radial | 112~122mT | Neodymium magnets | - |
| R1782 | 20 | 10 | 10 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2542 | 20 | 12 | 2.2 | Radial | 100~500mT | Neodymium magnets | 20x2.2mm with 12mm hole, Ni-plated N35 magnetic ring |
| R1696 | 20 | 12 | 3 | Radial | 62~72mT | Neodymium magnets | - |
| R1209 | 20 | 12 | 6 | Radial | 100-120mT | Sintered neodymium magnets | N50 |
| R2324 | 20 | 12.1 | 8 | Radial | 100~500mT | Neodymium magnets | - |
| R1236 | 20 | 13 | 3 | Radial | 100-120mT | Sintered neodymium magnets | N40SH |
| R1783 | 20 | 14 | 2.5 | Radial | 100~150mT | Neodymium magnets | Recently popular,Axial magnetization available. |
| R1698 | 20 | 14 | 3 | Radial | 48~58mT | Neodymium magnets | - |
| R2486 | 20 | 14 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R2812 | 20 | 14 | 18 | Radial | 100~500mT | Neodymium magnets | Grade: N44H |
| R1247 | 20 | 15 | 3 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R1238 | 20 | 15 | 5 | Radial | 100-120mT | Sintered neodymium magnets | Ring magnet |
| R1224 | 20 | 15 | 7 | Radial | 100-120mT | Sintered neodymium magnets | Multi-pole magnetic ring |
| R2782 | 20 | 20 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1871 | 20.3 | 10 | 36 | Radial | 100~500mT | Neodymium magnets | NicuNi coating, tolerance ±0.1 mm. |
| R1873 | 20.8 | 11 | 21 | Radial | 100~150mT | Neodymium magnets | - |
| R2488 | 21 | 10 | 30 | Radial | 100~500mT | Neodymium magnets | - |
| R1702 | 21 | 12.5 | 4 | Radial | 82~92mT | Neodymium magnets | - |
| R1703 | 21 | 14 | 3 | Radial | 48~58mT | Neodymium magnets | - |
| R1704 | 21 | 15 | 3 | Radial | 42~52mT | Neodymium magnets | - |
| R1191 | 21 | 15 | 4 | Radial | 100-120mT | Sintered neodymium magnets | Material N52 |
| R1706 | 21 | 15 | 7 | Radial | 92~102mT | Neodymium magnets | - |
| R1785 | 21 | 15 | 8 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R0516 | 21.4 | 3.2 | 6 | Radial | 155-165mT | Ferrite magnets | Magnetic encoder ring |
| R0517 | 21.4 | 4.96 | 6 | Radial | 155-165mT | Ferrite magnets | For 12V DC motor |
| R2489 | 22 | 10 | 25 | Radial | 100~500mT | Neodymium magnets | - |
| R2771 | 22 | 11 | 51 | Radial | 100~500mT | Neodymium magnets | Grade: N40H |
| R1707 | 22 | 16 | 4 | Radial | 52~62mT | Neodymium magnets | - |
| R2320 | 22 | 19 | 3 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R0251 | 22 | 20 | 5 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2737 | 22 | 22 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1301 | 22.3 | 16 | 32 | Radial | 300-500mT | Neodymium magnets | Applicable to motor magnetic ring, coating: Epoxy, Grade: 40SH |
| R0540 | 22.5 | 12 | 6.5 | Radial | 80-90mT | Ferrite magnets | Magnetic encoder ring |
| R1708 | 23 | 16 | 2 | Radial | 25~35mT | Neodymium magnets | - |
| R1406 | 23 | 17 | 4 | Radial | 50-60mT | Ferrite magnets | Isotropic Ferrite |
| R2081 | 23 | 17.2 | 3.5 | Radial | 100~500mT | Neodymium magnets | - |
| R0564 | 23 | 17.5 | 8 | Radial | 85-95mT | Injection molded ferrite magnets | Magnetic encoder ring |
| R1709 | 23 | 18 | 3 | Radial | 35~45mT | Neodymium magnets | - |
| R2647 | 23 | 18 | 6 | Radial | 100~500mT | Neodymium magnets | Grade: N42HNiCuNi Coating. |
| R1941 | 23.5 | 10 | 24 | Radial | 100~3650mT | Neodymium magnets | High Temp, Grade 40SH |
| R1942 | 23.5 | 10 | 32 | Radial | 100~5050mT | Neodymium magnets | |
| R2107 | 23.5 | 10 | 36 | Radial | 100~150mT | Neodymium magnets | - |
| R2097 | 23.5 | 12 | 37 | Radial | 100~150mT | Neodymium magnets | - |
| R0576 | 23.6 | 3.9 | 18 | Radial | 175-180mT | Ferrite magnets | Magnetic encoder ring |
| R2317 | 24 | 5 | 3 | Radial | 100~500mT | Neodymium magnets | - |
| R1786 | 24 | 5 | 33 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1869 | 24 | 10 | 32 | Radial | 100~150mT | Neodymium magnets | - |
| R1936 | 24 | 10 | 36 | Radial | 100~150mT | Neodymium magnets | |
| R2109 | 24 | 10 | 38 | Radial | 100~850mT | Neodymium magnets | Tolerace ±0.1mm |
| R2110 | 24 | 10 | 39 | Radial | 100~1200mT | Neodymium magnets | Tolerace ±0.1mm |
| R2491 | 24 | 10 | 40 | Radial | 100~500mT | Neodymium magnets | - |
| R1947 | 24 | 12 | 18 | Radial | 100~500mT | Neodymium magnets | |
| R1946 | 24 | 12 | 38 | Radial | 100~150mT | Neodymium magnets | |
| R2319 | 24 | 12.5 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R2318 | 24 | 14 | 3 | Radial | 100~500mT | Neodymium magnets | - |
| R1283 | 24 | 16 | 5 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R1711 | 24 | 19 | 2 | Radial | 22~32mT | Neodymium magnets | - |
| R0959 | 24 | 19.4 | 2.5 | Radial | 85-100mT | Bonded neodymium magnets | - |
| R1229 | 24 | 19.6 | 2 | Radial | 100-120mT | Sintered neodymium magnets | High temperature resistance 150° |
| R2540 | 25 | 14 | 2.2 | Radial | 100~500mT | Neodymium magnets | 14mm Ni-plated N35 magnetic ring |
| R1712 | 25 | 15 | 5 | Radial | 78~88mT | Neodymium magnets | - |
| R2492 | 25 | 15 | 51 | Radial | 100~500mT | Neodymium magnets | - |
| R1267 | 25 | 16 | 5 | Radial | 100-120mT | Sintered neodymium magnets | N38 |
| R1787 | 25 | 18 | 5 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1788 | 25 | 18 | 8.5 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1714 | 25 | 20 | 5 | Radial | 42~52mT | Neodymium magnets | - |
| R1790 | 25 | 21 | 15 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R0262 | 25 | 23 | 7 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R2732 | 25 | 25 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R1373 | 25.2 | 20 | 15 | Radial | 300-500mT | Neodymium magnets | Applicable to motor magnetic ring, coating: ZnGrade: N35UH |
| R1316 | 25.5 | 20 | 15 | Radial | 300-500mT | Neodymium magnets | Applicable to motor magnetic ring, coating: ZnGrade: N35UH |
| R2495 | 26 | 9 | 50 | Radial | 100~500mT | Neodymium magnets | - |
| R1943 | 26 | 10 | 23.5 | Radial | 100~9950mT | Neodymium magnets | |
| R2493 | 26 | 10 | 38 | Radial | 100~500mT | Neodymium magnets | - |
| R2494 | 26 | 10 | 40 | Radial | 100~500mT | Neodymium magnets | - |
| R2312 | 26 | 14.2 | 6.5 | Radial | 100~500mT | Neodymium magnets | - |
| R2309 | 26 | 18 | 10 | Radial | 100~500mT | Neodymium magnets | - |
| R1268 | 26 | 18 | 21 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R2311 | 26 | 18 | 35 | Radial | 100~500mT | Neodymium magnets | - |
| R2308 | 26 | 18 | 55 | Radial | 100~500mT | Bonded neodymium magnets | - |
| R1791 | 26 | 20 | 2 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R1879 | 26 | 20 | 20 | Radial | 100~500mT | Neodymium magnets | - |
| R1257 | 26 | 20.5 | 17 | Radial | 100-120mT | Sintered neodymium magnets | N40 |
| R1715 | 26 | 22 | 2.5 | Radial | 25~35mT | Neodymium magnets | - |
| R2496 | 26.4 | 11 | 40 | Radial | 100~500mT | Neodymium magnets | - |
| R1248 | 26.4 | 16.5 | 3 | Radial | 100-120mT | Sintered neodymium magnets | magnetic steel |
| R2307 | 26.4 | 16.7 | 3 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R1270 | 26.4 | 16.7 | 8 | Radial | 100-120mT | Sintered neodymium magnets | High temperature resistance 150° |
| R1792 | 26.7 | 22.9 | 4.5 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2305 | 27 | 23.1 | 2 | Radial | 100~500mT | Neodymium magnets | - |
| R2043 | 27.5 | 11.5 | 50 | Radial | 100~500mT | Neodymium magnets | N38H with high temperature resistance. |
| R2271 | 27.8 | 17.2 | 8 | Radial | 100~500mT | Neodymium magnets | - |
| R1874 | 28 | 12 | 30 | Radial | 100~150mT | Neodymium magnets | - |
| R0279 | 28 | 18 | 5 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R1876 | 28 | 19.2 | 13 | Radial | 100~500mT | Neodymium magnets | - |
| R1877 | 28 | 19.95 | 30 | Radial | 100~500mT | Neodymium magnets | Zn coating, tolerance ±0.1 mm. |
| R1878 | 28 | 20 | 12 | Radial | 100~150mT | Neodymium magnets | - |
| R2497 | 28 | 20 | 15 | Radial | 100~500mT | Neodymium magnets | - |
| R1953 | 28 | 20 | 30 | Radial | 100~500mT | Neodymium magnets | |
| R1264 | 28 | 23 | 25 | Radial | 100-120mT | Sintered neodymium magnets | N38 |
| R2809 | 28.5 | 17 | 20 | Radial | 100~500mT | Neodymium magnets | Grade: N38 |
| R0656 | 28.7 | 3.2 | 13.9 | Radial | 50-60mT | Injection molded ferrite magnets | Fan Motor Rotor |
| R0073 | 29.1 | 20 | 4 | Radial | 185-190mT | Bonded neodymium magnets | Brushless AC motor encoder speed measuring magnet |
| R1870 | 30 | 10 | 6 | Radial | 100~500mT | Neodymium magnets | - |
| R1225 | 30 | 17 | 5.9 | Radial | 100-120mT | Sintered neodymium magnets | N52 |
| R1880 | 30 | 20 | 10 | Radial | 100~500mT | Neodymium magnets | Strong Radial Magnet |
| R2801 | 30 | 21 | 20 | Radial | 100~500mT | Neodymium magnets | Grade: N38SH |
| R2301 | 30 | 22 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R2300 | 31 | 19.2 | 9 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R1263 | 32 | 20 | 5 | Radial | 100-120mT | Sintered neodymium magnets | N35 |
| R2499 | 32 | 24 | 1.5 | Radial | 100~500mT | Neodymium magnets | - |
| R2623 | 32.5 | 12.5 | 3 | Radial | 100~500mT | Neodymium magnets | Grade: N38The S and N electrodes have holes with a small diameter of 2.3 mm; these holes are through holes. |
| R2500 | 33 | 15 | 35 | Radial | 100~500mT | Neodymium magnets | - |
| R2755 | 33.5 | 30.5 | 2 | Radial | 100~500mT | Neodymium magnets | Grade: N40M |
| R2082 | 34 | 10 | 16 | Radial | 100~500mT | Neodymium magnets | - |
| R1875 | 34 | 18 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R2471 | 34 | 20 | 15 | Radial | 100~500mT | Neodymium magnets | - |
| R1210 | 34 | 28 | 5 | Radial | 100-120mT | Sintered neodymium magnets | Strong magnetic ring |
| R2295 | 35 | 2.6 | 12 | Radial | 100~500mT | Neodymium magnets | - |
| R2501 | 35 | 4 | 10 | Radial | 100~500mT | Neodymium magnets | - |
| R2297 | 35 | 18 | 6 | Radial | 100~500mT | Neodymium magnets | High-Temperature-Resistant Magnetic Ring |
| R1950 | 35 | 18 | 21 | Radial | 100~500mT | Neodymium magnets | |
| R2296 | 35 | 30 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R1277 | 35 | 30 | 40 | Radial | 260mT | Sintered neodymium magnets | - |
| R2502 | 36 | 12 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R2293 | 37 | 20 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R0342 | 37 | 33 | 10 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R1954 | 37.5 | 25 | 6 | Radial | 100~500mT | Neodymium magnets | |
| R2736 | 38 | 25.5 | 12 | Radial | 100~500mT | Neodymium magnets | Grade: N35 |
| R1793 | 39.9 | 30.3 | 4 | Radial | 100~150mT | Neodymium magnets | Axial magnetization available. |
| R2503 | 40 | 8 | 15 | Radial | 100~500mT | Neodymium magnets | - |
| R1881 | 40 | 25 | 5 | Radial | 100~500mT | Neodymium magnets | - |
| R1882 | 40 | 25 | 6 | Radial | 100~500mT | Neodymium magnets | Industrial Radial Magnet |
| R1883 | 40 | 30 | 10 | Radial | 100~150mT | Neodymium magnets | - |
| R1259 | 40 | 34 | 5 | Radial | 100-120mT | Sintered neodymium magnets | magnetic steel |
| R2290 | 42 | 17 | 1.5 | Radial | 100~500mT | Neodymium magnets | Zn coating |
| R2288 | 46 | 41.6 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R2287 | 47 | 39 | 2 | Radial | 100~500mT | Neodymium magnets | - |
| R1227 | 47 | 39 | 2.5 | Radial | 100-120mT | Sintered neodymium magnets | N38 |
| R1921 | 48 | 5 | 45 | Radial | 100~500mT | Neodymium magnets | |
| R2701 | 48 | 11 | 25 | Radial | 100~500mT | Neodymium magnets | Grade: N40H |
| R2504 | 48 | 20 | 4 | Radial | 100~500mT | Neodymium magnets | - |
| R1265 | 48 | 42 | 25 | Radial | 100-120mT | Sintered neodymium magnets | N38 |
| R1274 | 50 | 40 | 8 | Radial | 100-120mT | Sintered neodymium magnets | magnetic steel |
| R1959 | 50 | 40 | 19 | Radial | 100~500mT | Neodymium magnets | |
| R0438 | 55 | 48 | 5 | Outer,Radial | 100-150mT | Bonded neodymium magnets | - |
| R0820 | 58 | 53 | 4 | Radial | 85-100mT | Bonded neodymium magnets | Magnetic encoder ring |
| R1266 | 60 | 10 | 10 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R1253 | 60 | 52 | 8 | Radial | 100-120mT | Sintered neodymium magnets | N35 |
| R2284 | 60 | 58 | 8 | Radial | 100~500mT | Neodymium magnets | - |
| R2281 | 62 | 54 | 19.5 | Radial | 100~500mT | Neodymium magnets | - |
| R1956 | 65 | 28.5 | 34 | Radial | 100~11700mT | Neodymium magnets | |
| R1183 | 65 | 60 | 4 | Radial | 60-70mT | Bonded neodymium magnets | Hall Sensor Gear Ring |
| R2280 | 69 | 63 | 23 | Radial | 100~500mT | Neodymium magnets | - |
| R2681 | 70 | 30 | 10 | Radial | 100~500mT | Neodymium magnets | Grade: N40MNiCuNi Coating. |
| R2279 | 70 | 40 | 8 | Radial | 100~500mT | Neodymium magnets | - |
| R2278 | 70 | 63 | 25 | Radial | 100~500mT | Neodymium magnets | - |
| R2277 | 70 | 65 | 25 | Radial | 100~500mT | Neodymium magnets | - |
| R1884 | 74.5 | 58 | 15 | Radial | 100~500mT | Neodymium magnets | Zn coating, tolerance ±0.1 mm. |
| R1284 | 80 | 20 | 10 | Radial | 100-120mT | Sintered neodymium magnets | - |
| R1958 | 80 | 29.5 | 52 | Radial | 100~12050mT | Neodymium magnets | |
| R1957 | 80.3 | 29.5 | 52 | Radial | 100~11350mT | Neodymium magnets | |
| R0858 | 99 | 93 | 4 | Radial | 85-100mT | Bonded neodymium magnets | Magnetic encoder ring |
Leyenda de la tabla
| No. | Artículo | Descripción | Notas |
|---|---|---|---|
| 1 | PN | Número de pieza | Cada imán/anillo magnético tiene un PN único. A veces, los valores duplicados se deben a diferencias en los grados de la materia prima. |
| 2, 3, 4 | O.D./I.D./T | Dimensiones del anillo magnético | Todas las dimensiones de la tabla están en milímetros. O.D = Diámetro exterior I.D = Diámetro interior T = Grosor |
| 5 | MT | Número de polos de la pista principal | En un anillo magnético de una sola pista, la pista principal representa el número de polos magnéticos. Por ejemplo, "10 polos" significa 5 pares de polos. |
| 6 | NT | Pista Nonius: Órbita con menor número de polos | En un anillo codificador magnético de 2 pistas, la pista Nonius suele tener el menor número de polos. El número de polos en la pista Nonius a veces puede ser un número impar, como 3 polos. |
| 5 | MATL | Material del anillo magnético | Existen varios tipos de materiales para anillos magnéticos. Consulte las preguntas frecuentes en la parte inferior de la página. |
| 6 | SF | Campo magnético superficial | Se refiere a la intensidad del campo magnético superficial. |
| 7 | MAG | Método de magnetización | Los métodos de magnetización comunes se enumeran en la parte superior de la página. |
| 8 | CMTS | Comentarios | Esta sección proporciona información sobre el uso, las características y otros detalles del anillo magnético. |
Propiedades físicas y magnéticas seleccionadas
| Propiedad | Valor |
|---|---|
| Material | Neodimio (NdFeB) |
| Remanencia (Br) | 1.17 - 1.21 T |
| Producto de energía máxima (BHmax) | 33 - 36 kJ/m³ |
| Coercitividad (Hcb) | 10.9 kA/m |
| Coercitividad intrínseca (Hcj) | 12 kA/m |
| Grado del material | N35 |
| Temperatura de trabajo | 80 - 180 °C |
| Temperatura de Curie | 320 - 460 °C |
| Densidad | 7.5 g/cm³ |
Preguntas frecuentes (FAQs)
¿Cómo comprar anillos magnéticos de ccmagnetics?
Por favor envíe el número de SKU y la cantidad de los anillos magnéticos que desea de la lista.
Su vendedor le enviará una cotización de precio y opciones de pago (T/T 100% por adelantado o tarjeta de crédito 100% por adelantado).
- Artículos en stock: Se envían inmediatamente después del pago.
- Artículos fuera de stock: Se envían dentro de los 30 días posteriores al pago.
¿Por qué las cotizaciones para pedidos pequeños de anillos en stock duran solo 5 días?
Nuestros anillos magnéticos tienen un beneficio clave: costos transparentes para moldes y bobinas de magnetización. No cobramos extra por estos.
Para pedidos pequeños de muestra (alrededor de 10 piezas), este stock suele ser sobrante de producciones más grandes. Por favor pague rápidamente para asegurar su stock. No iniciamos producción para pedidos pequeños; no es rentable para nosotros.
Generalmente iniciamos la producción para pedidos de más de 2k-10k piezas para gestionar costos. Si su pedido es pequeño y no se confirma rápidamente, podría perderse el stock actual.
¿Cómo entender los números de polos y dimensiones en la tabla?
Tamaños: Todas las longitudes están en milímetros (mm) por defecto.
Número de polos:
- La Pista Maestra (Master-track) se refiere al recuento de polos de la pista magnética principal en un imán de anillo. La mayoría de los imanes de anillo, como los de motores o codificadores incrementales, tienen solo una pista magnética.
- Sin embargo, los imanes de anillo para codificadores absolutos o imanes de anillo para codificadores con puntos de referencia también tienen una Pista Nonius (Nonius-track). Esto significa que tienen dos pistas magnéticas, como se muestra en la imagen.
¿Qué son los imanes de ferrita y los imanes de ferrita moldeados por inyección?
- Los imanes de ferrita también se llaman ferrita sinterizada o imanes de ferrita dura. Parecen y están hechos como cerámica, por lo que algunos los llaman imanes cerámicos. Estos imanes son baratos de fabricar en grandes cantidades, aunque los costos de los moldes son altos. Son muy buenos resistiendo el óxido y las altas temperaturas, hasta 250℃. Los imanes de ferrita son precisos y de bajo costo para codificadores. Pero, pueden romperse fácilmente si se sacuden mucho, como en robots para exteriores. Para esos, el material de imán de caucho vulcanizado es más estable.
- Los imanes de ferrita moldeados por inyección se fabrican mezclando polvo magnético de ferrita con aglutinantes plásticos como Nylon (PA6 o 12) o PPS. Esta mezcla se moldea por inyección, lo que significa que se le da forma usando un molde. Estos imanes incluso se pueden moldear directamente sobre un eje de metal. Pueden funcionar en temperaturas de hasta 150°C.
¿Qué son los imanes de neodimio aglomerados?
Los imanes de neodimio aglomerados (bonded) se fabrican mezclando polvo magnético de neodimio con un aglutinante.
En pocas palabras, son moldeados por inyección, lo que significa que contienen un aglutinante. Aproximadamente el 80% del imán es polvo de neodimio y el 20% restante es aglutinante.
Sus beneficios incluyen alta precisión dimensional, gran flexibilidad de diseño y buena resistencia mecánica.
¿Qué son los imanes de neodimio moldeados por inyección?
Los imanes de neodimio moldeados por inyección se fabrican mezclando polvo magnético de neodimio con termoplástico. Esta mezcla se moldea por inyección. Estos imanes son más fuertes que los imanes de ferrita moldeados por inyección.
Los imanes de neodimio moldeados por inyección se pueden fabricar en muchas formas. Pueden ser pequeños o irregulares. Puede magnetizarlos con múltiples polos o patrones complejos. También son muy precisos y consistentes en su forma.
Estos imanes se pueden moldear directamente sobre núcleos de motor o ejes de metal. Esto ahorra costos de montaje. Se consideran una opción más fuerte que los imanes de ferrita moldeados por inyección. Pueden funcionar en temperaturas de hasta 180℃.
¿Qué son los imanes de neodimio/ferrita moldeados por inyección con anillo de metal de cobre?
Estos imanes son imanes de neodimio o ferrita moldeados por inyección que incluyen un portador de metal. Por favor vea la imagen a continuación:
Estos imanes son imanes de neodimio o ferrita moldeados por inyección que incluyen un portador de metal. Por favor vea la imagen a continuación:
¿Qué son los imanes de NdFeB sinterizados?
Los imanes de NdFeB sinterizados también se llaman imanes de Neodimio Sinterizados. Estos son los imanes permanentes más fuertes conocidos. Están hechos de neodimio (Nd), hierro (Fe), boro (B) y otros elementos de tierras raras.
Estos imanes crean campos magnéticos muy fuertes y permanecen magnéticos a temperatura ambiente. Se pueden fabricar en muchas formas. Esto los hace excelentes para muchos usos, especialmente para motores comerciales de alta gama.
Sinterización es cómo se fabrican. Los materiales en polvo se calientan hasta que se fusionan. Este proceso hace que los imanes sean más fuertes y efectivos.
Sin embargo, estos imanes pueden corroerse fácilmente y se ven afectados por altas temperaturas. Por lo tanto, generalmente están recubiertos (a menudo con una capa de níquel-cobre-níquel) para protegerlos. Agregar elementos pesados de tierras raras también les ayuda a resistir temperaturas más altas.
¿Qué es el material de imán vulcanizado/de caucho?
- El material de imán de caucho vulcanizado se fabrica cuando se agrega polvo magnético al caucho durante un proceso llamado vulcanización. Este proceso cambia la estructura del caucho, haciéndolo mucho más fuerte, elástico y estable. Los imanes de caucho vulcanizado se utilizan a menudo para objetivos magnéticos en robots deportivos. Son flexibles y no se rompen fácilmente por golpes.
- Los imanes de caucho están hechos de polvo magnético mezclado con caucho sintético. Se forman por extrusión, calandrado o moldeo por inyección. Puede hacerlos en tiras, rollos, láminas, bloques, anillos y muchas otras formas. Sus principales ventajas son que son flexibles y se pueden hacer en varias formas. Sin embargo, su desventaja es que no son muy fuertes (no tienen alta remanencia) en comparación con los imanes de neodimio. Para codificadores, los imanes de caucho regulares no pueden satisfacer las necesidades de alta precisión. Solo son buenos para codificadores incrementales de una sola pista.
¿Cómo muestra CCMagnetics el campo magnético superficial?
Por defecto, utilizamos mT (militesla) para el magnetismo superficial. Si necesita Gauss (Gs), la conversión es: 1 mT = 10 Gs. Por ejemplo, 150 mT = 1500 Gs.
¿Qué son los Comentarios en una tabla?
Los comentarios son una descripción simple del uso y las características del imán. Si tiene preguntas, comuníquese con nuestro equipo de ventas.
Valoraciones
No hay valoraciones aún.
